MMCX Micro-Miniature Connectors
50 Ohm MMCX micro-miniature connectors
- Are one of the smallest RF connector series available.
- MMCX feature a snap together interface and are suitable for applications up to 6 GHz,
- They conform to CECC 22000 standards.
- The micro size footprint of MMCX makes them ideal for antenna and board connections where space or weight is critical.
- Applications include GPS, Automotive, Telemetry, Medical and all Handheld devices
-

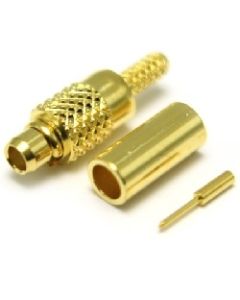

47-005-D3-AA | 47005D3AA | MMCX Straight Crimp PlugMMCX 50 ohm full crimp straight plug. With gold plated centre contact and annealed crimp zones, Suitable for use with RG178 and similar cables in group AA.
-

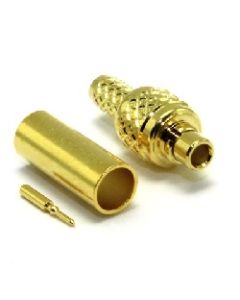

47-005-D3-AD | 47005D3AD | MMCX Straight Crimp PlugMMCX 50 ohm full crimp straight plug. With gold plated centre contact and annealed crimp zones, Suitable for use with RG174 and similar cables in group AD.
-
47-005-D3-AE | 47005D3AE | MMCX Straight Crimp PlugMMCX 50 ohm full crimp straight plug. With gold plated centre contact and annealed crimp zones, Suitable for use with RD316 and similar cables in group AE.
-

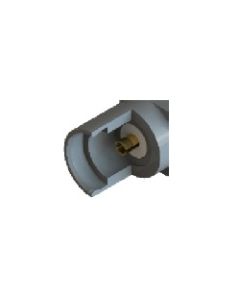

47-014-D3-HA | 47014D3HA | MMCX Straight Solder PlugMCX 50 ohm straight direct solder plug. With gold plated centre contact for reliable performance. For use with RG405 semi-rigid and similar cables in group HA
-
47-054-D3-AA | 47054D3AA | MMCX Straight Crimp JackMMCX 50 ohm full crimp straight jack with gold plated centre and outer contact. Suitable for use with RG178 and similar cables in group AA.
-

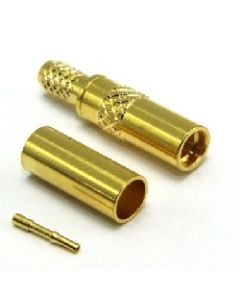

47-054-D3-AD | 47054D3AD | MMCX Straight Crimp JackMMCX 50 ohm full crimp straight jack with gold plated centre and outer contact. Suitable for use with RG316 and similar cables in group AD
-
47-054-D3-AE | 47054D3AE | MMCX Straight Crimp JackMMCX 50 ohm full crimp straight jack with gold plated centre and outer contact. Suitable for use with RD316 and similar cables in group AE
-

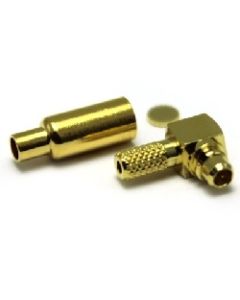

47-105-D3-AA | 47105D3AA | MMCX R/A Solder / Crimp PlugMMCX 50 ohm right angle solder crimp plug. With gold plated centre contact and annealed crimp sleeve, For use with RG178 and similar cables in group AA
-

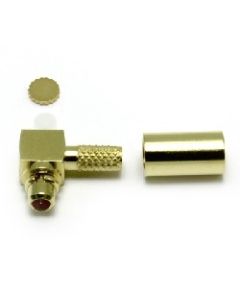

47-105-D3-AD | 47105D3AD | MMCX R/A Solder / Crimp PlugMMCX 50 ohm right angle solder crimp plug. With gold plated centre contact and annealed crimp sleeve, For use with RG316 and similar cables in group AD
-

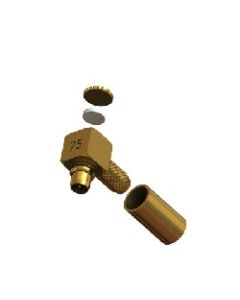

47-105-D6-AB | 47105D6AB | MMCX R/A Solder / Crimp PlugMMCX 75 ohm right angle solder crimp plug. With gold plated centre contact and annealed crimp sleeve, For use with cables in group AB
-
47-254-D3-AB | 47254D3AB | MMCX Bulkhead Crimp JackMMCX 75 ohm full crimp bulkhead jack with single flat on the body for rear mounted D hole fixing,Suitable for use with RG179 and similar cables in group AB.
-

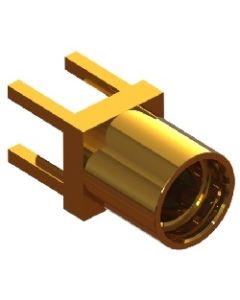

47-450-D3 | 47450D3 | MMCX PCB Mount Jack StraightMMCX straight PCB jack. Through-hole gold plated 4 leg solder body, with gold plated solder centre contact.
