47-054-D3-AE | 47054D3AE | MMCX Straight Crimp Jack

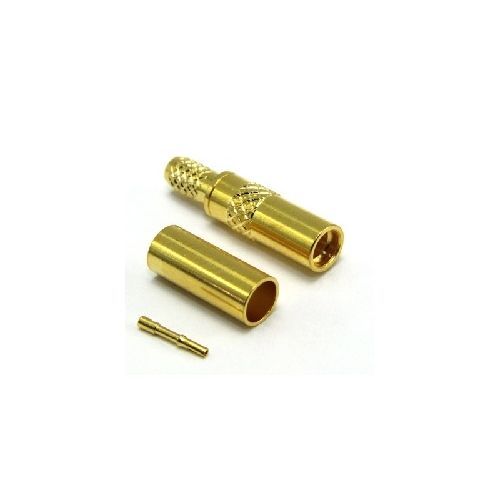

MMCX 50 ohm full crimp straight jack with gold plated centre and outer contact. Suitable for use with RD316 and similar cables in group AE
More Information
Complete Electronics Part No. 47054D3AE
Manufacturers Part No. 47-054-D3-AE
Male/Female: Female
Type PCB Mounting
Impedance 75 Ohm
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 6GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 122340
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 7N min
  • Cable Retention: 100N min
  • Weight:
  • Mating Force: 10N Max
  • Uncoupling Force: 20N Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP40

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
