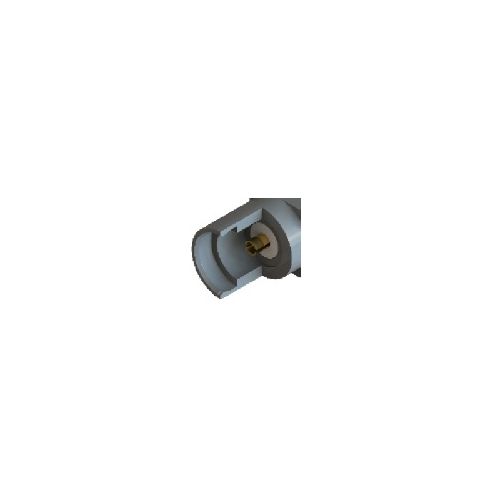

47-014-D3-HA | 47014D3HA | MMCX Straight Solder Plug
MCX 50 ohm straight direct solder plug. With gold plated centre contact for reliable performance. For use with RG405 semi-rigid and similar cables in group HA
| Complete Electronics Part No. | 47014D3HA |
|---|---|
| Manufacturers Part No. | 47-014-D3-HA |
| Male/Female: | Female |
| Type | PCB Mounting |
| Impedance | 75 Ohm |
| Working Frequency | Up To 6GHz |
Description
MCX 50 ohm straight solder plug.
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 6GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 122340
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 7N min
- Cable Retention: 200N min
- Weight:
- Mating Force: 10N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
