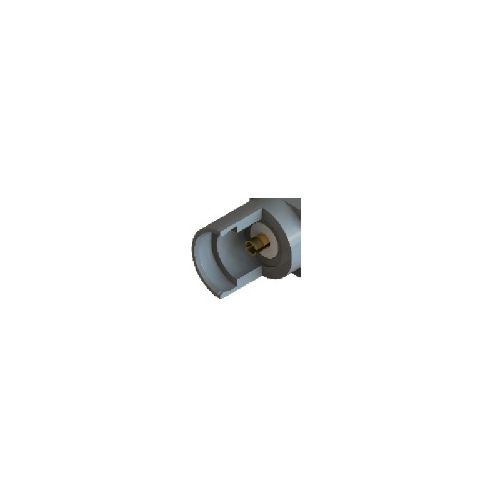

47-254-D3-AB | 47254D3AB | MMCX Bulkhead Crimp Jack
MMCX 75 ohm full crimp bulkhead jack with single flat on the body for rear mounted D hole fixing,Suitable for use with RG179 and similar cables in group AB.
| Complete Electronics Part No. | 47254D3AB |
|---|---|
| Manufacturers Part No. | 47-254-D3-AB |
| Male/Female: | Female |
| Type | PCB Mounting |
| Impedance | 75 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 6GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 122340
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 7N min
- Cable Retention: 60N min
- Weight:
- Mating Force: 10N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
Note : 50 and 75 Ohm version of MMCX connectors are not compatible
