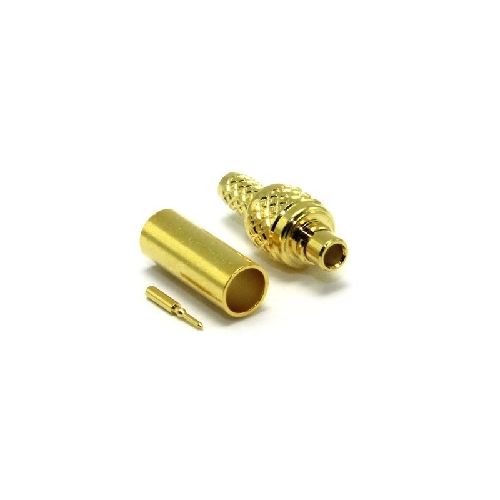

47-005-D3-AD | 47005D3AD | MMCX Straight Crimp Plug
MMCX 50 ohm full crimp straight plug. With gold plated centre contact and annealed crimp zones, Suitable for use with RG174 and similar cables in group AD.
| Complete Electronics Part No. | 47005D3AD |
|---|---|
| Manufacturers Part No. | 47-005-D3-AD |
| Male/Female: | Female |
| Type | PCB Mounting |
| Impedance | 75 Ohm |
| Working Frequency | Up To 6GHz |
Description
MMCX 50 ohm full crimp straight plug
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 6GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 122340
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 7N min
- Cable Retention: 100N min
- Weight: 1.05g
- Mating Force: 10N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
