LAPP Industrial Ethernet
ETHERLINE® ACCESS
Overview of the products
- NAT (Basic NAT, NAPT) and port forwarding
- With firewall functions
- Integrated firewall function
- RJ45 Ports: 10/100BaseT(X)
- Temperature range: -40 °C to 75 °C
- Voltage range: 18 - 30 VDC
- UL 61010
-
21700120 | ETHERLINE® ACCESS U16TIndustrial Unmanaged Ethernet switch, 16 x RJ45 10/100 BaseT(X) Ports, DIN rail mounting, Redundant Power Inputs -
21700123 | ETHERLINE® ACCESS U05T-2GENIndustrial Unmanaged Ethernet switch, 5 x RJ45 10/100 BaseT(X) Ports, DIN rail mounting, Redundant Power Inputs -
21700124 | ETHERLINE® ACCESS U08T-2GENIndustrial Unmanaged Ethernet switch, 8 x RJ45 10/100 BaseTX Ports, DIN rail mounting, Redundant Power Inputs -
21700125 | ETHERLINE® ACCESS M06T-2GENIndustrial Managed Ethernet switch, 6 x RJ45 10/100/1000 BaseT(X), Ports, DIN rail mounting, Redundant Power Inputs -
21700126 | ETHERLINE® ACCESS M08T-2GENIndustrial Managed Ethernet switch, 8 x RJ45 10/100/1000 BaseT(X), Ports, DIN rail mounting, Redundant Power Inputs -
21700129 | ETHERLINE® ACCESS U08GTIndustrial Unmanaged Ethernet switch, 8 x RJ45 10/100/1000 BaseT(X) Ports, DIN rail mounting, Redundant Power Inputs -
21700136 | ETHERLINE® ACCESS M08T02SFPIndustrial Managed Ethernet switch, 8 x RJ45 + 2 x SFP 10/100/1000 BaseT(X), Ports, DIN rail mounting, Redundant Power Inputs -
21700137 | ETHERLINE® ACCESS M08T02GSFPIndustrial Managed Ethernet switch, 8 x RJ45 + 2 x SFP Gbit / s 10/100/1000 BaseT(X), Ports, DIN rail mounting, Redundant Power Inputs -
21700138 | ETHERLINE® ACCESS U04TP01T (P0E)Industrial Ethernet Unmanaged PoE switch, 5 x RJ45 10/100 BaseT(X) Ports of which 4 are PoE, DIN rail mounting, Redundant Power Inputs -
21700140 | ETHERLINE® ACCESS PNF04TIndustrial unmanaged Ethernet switch, 4 x RJ45 10/100/1000 BaseT(X), Ports, PROFINET® enabled, DIN rail mounting -

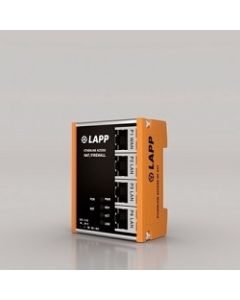

21700141 | ETHERLINE® ACCESS NF04T4 x RJ45 Ports: 10/100/1000 BaseT(X), NAT (Basic NAT, NAPT) and port forwarding, Integrated Firewall feature -
21700142 | ETHERLINE® ACCESS PNF08TIndustrial unmanaged Ethernet switch, 8 x RJ45 10/100/1000 BaseT(X), Ports, PROFINET® enabled, DIN rail mounting
