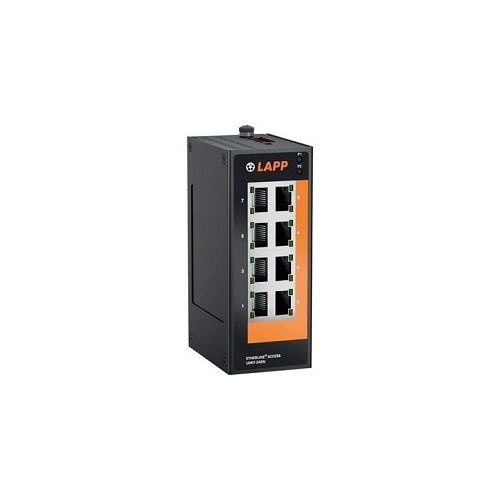

21700129 | ETHERLINE® ACCESS U08GT
Industrial Unmanaged Ethernet switch, 8 x RJ45 10/100/1000 BaseT(X) Ports, DIN rail mounting, Redundant Power Inputs
| Complete Electronics Part No. | 21700129 |
|---|---|
| Manufacturers Part No. | 21700129 |
| Total 10/100/1000 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
Description
8 Port Unmanaged Ethernet switch
- Redundant power inputs
- Robust metal housing
- DIN rail mounting
- 8 x RJ45 Ports: 10/100/1000 BaseT(X)
- Packet Buffer Size: 4 Mbit
- packet forwarding rate: 11.90 Mpps
- Jumbo Frame Size: 9.6 KB (max.)
- Broadcast storm protection
- Processing Type: Store and Forward
- Redundant Power Inputs: DC 24 V (18-30 V DC)
- Protection rating: IP30
- Temperature range: -10°C up to +60°C
- Part Number 21700120
Approvals
- UL 61010
- Shock IEC 60068-2-27
- Freefall IEC60068-2-32
- Vibration IEC 60068-2-6
