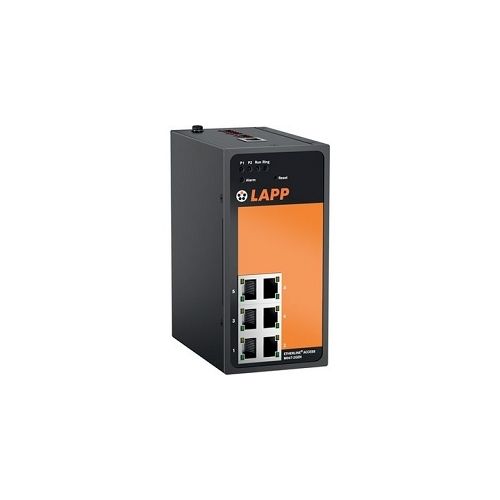

21700125 | ETHERLINE® ACCESS M06T-2GEN
Industrial Managed Ethernet switch, 6 x RJ45 10/100/1000 BaseT(X), Ports, DIN rail mounting, Redundant Power Inputs
| Complete Electronics Part No. | 21700125 |
|---|---|
| Manufacturers Part No. | 21700125 |
| Total 10/100/1000 (RJ45) Ports: | 6 |
| Total Ethernet Ports: | 6 |
Description
6 Port Managed Ethernet switch
- Redundant power inputs
- Robust metal housing
- DIN rail mounting
- Fanless – maintenance free
- Simple setup of redundant network topologies with reconfiguration time < 20 ms
- 6 x RJ45 Ports: 10/100/1000 BaseT(X)
- Packet Buffer Size: 1 Mbit
- Supported protocols: HTTPS/SSL, SSH, TACACS+, RADIUS, SNTP Client, Ethernet IP, Modbus TCP
- Redundant Power Inputs: DC 24 V (18-30 V DC)
- Protection rating: IP40
- Temperature range: -40°C up to +75°C
- Part Number 21700125
Approvals
- UL 61010
- Shock IEC 60068-2-27
- Freefall IEC60068-2-32
- Vibration IEC 60068-2-6
