Lapp H05Z-K 90°C & H07Z
H05Z-K 90°C
Halogen-free single core, harmonised
- Harmonised; halogen-free to protect human life, the environment and material assets
- H05Z-K 90°C, <HAR>, Halogen-free single core, harmonised, for wiring in control cabinets, nominal voltage 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- Halogen-free and harmonised (HAR)
- For expanded ambient temperatures
- see ÖLFLEX® HEAT 125 SC
-
4725001 | H05Z-K 90°C 1x0,5 GNYE | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm
-
4725001K | H05Z-K 90°C EMBOSS 1x0,5 GNYE | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm
-
4725002 | H05Z-K 90°C 1x0,75 GNYE | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm
-
4725002K | H05Z-K 90°C EMBOSS 1x0,75 GNYE | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm
-
4725003 | H05Z-K 90°C 1x1 GNYE | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm
-
4725003K | H05Z-K 90°C EMBOSS 1x1 GNYE | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm
-

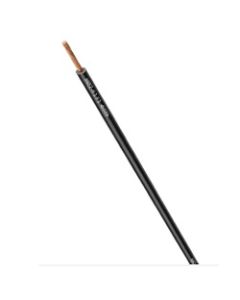

4725011 | H05Z-K 90°C 1x0,5 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm
-
4725011K | H05Z-K 90°C EMBOSS 1x0,5 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm
-
4725012 | H05Z-K 90°C 1x0,75 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm
-
4725012K | H05Z-K 90°C EMBOSS 1x0,75 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm
-
4725013 | H05Z-K 90°C 1x1 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm
-
4725013K | H05Z-K 90°C EMBOSS 1x1 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm
