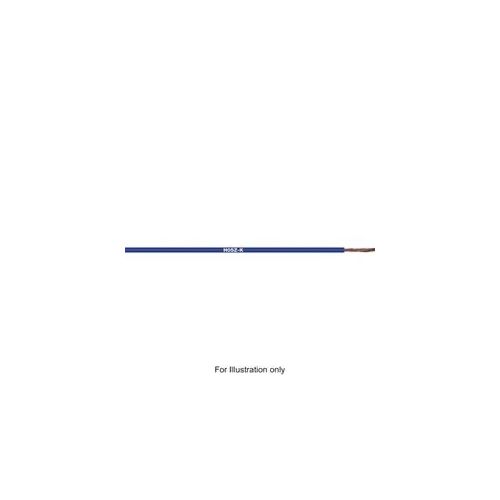

4725012 | H05Z-K 90°C 1x0,75 BK | Single Core Cable
Harmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm
| Complete Electronics Part No. | 4725012 |
|---|---|
| Manufacturers Part No. | 4725012 |
| Control Cabinet Series | H05Z-K 90°C |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Black |
Description
Harmonised Halogen-Free Cable
For Wiring in Control Cabinets
- Conductor Cross Section: 0.75mm²
- Cable Outer Diameter: 2.2 - 2.8mm
- Core Colour: Black
- Flame-retardant according IEC 60332-1-2
- Low smokes/low smoke density according to IEC 61034
- HAR cable type certification acc. EN 50525-3-41
- Core insulation: Halogen-free
- Nominal voltage: U0/U: 300/500 V
- Temperature Range Fixed Install: HAR/IEC: -40°C to +90°C
- Cable Length: 100M
- Lapp Part Number: 4725012
