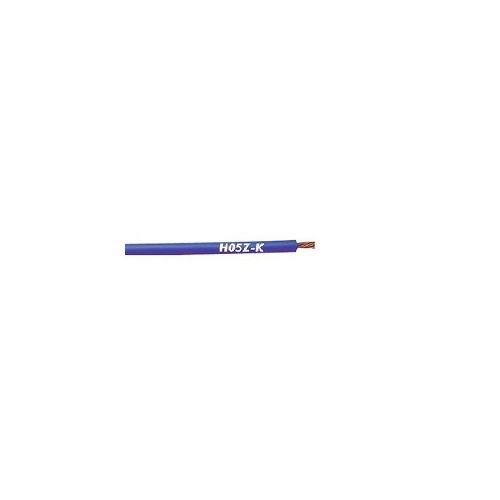

4725011K | H05Z-K 90°C EMBOSS 1x0,5 BK | Single Core Cable
Harmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm
| Complete Electronics Part No. | 4725011K |
|---|---|
| Manufacturers Part No. | 4725011K |
| Control Cabinet Series | H05Z-K 90°C |
| Number of Conductors: | 1 |
| Conductor Size: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Black |
Description
Harmonised Halogen-Free Cable
For Wiring in Control Cabinets
- Conductor Cross Section: 0.5mm²
- Cable Outer Diameter: 2.1 - 2.6mm
- Core Colour: Black
- Flame-retardant according IEC 60332-1-2
- Low smokes/low smoke density according to IEC 61034
- HAR cable type certification acc. EN 50525-3-41
- Core insulation: Halogen-free
- Nominal voltage: U0/U: 300/500 V
- Temperature Range Fixed Install: HAR/IEC: -40°C to +90°C
- Cable Length: 4000M
- Lapp Part Number: 4725011K
