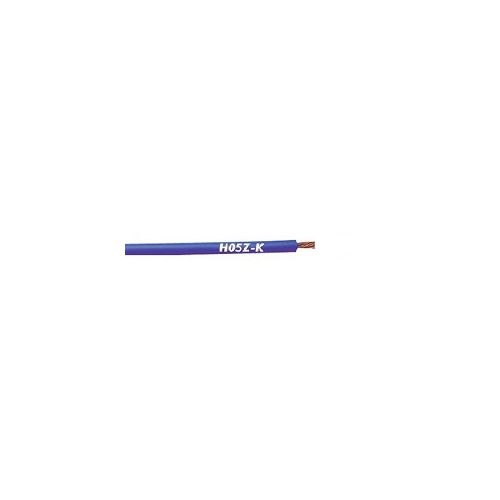

4725002K | H05Z-K 90°C EMBOSS 1x0,75 GNYE | Single Core Cable
Harmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm, Working temp. -40°C to 90°C
| Complete Electronics Part No. | 4725002K |
|---|---|
| Manufacturers Part No. | 4725002K |
| Control Cabinet Series | H05Z-K 90°C |
| Number of Conductors: | 1 |
| Conductor Size: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Green/Yellow |
Description
Oil-resistant - No
Weather resistant - No
PWIS-free - Yes
UV-resistant - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
Halogen Free - Yes acc. EN 50525-1 Annex B
Low smoke gas emission and low corrosiveness of gases
Made in accordance with harmonised European design H05Z-K, with ◁HAR▷ testing mark
Available as ring, on coils or in large disposable cardboard boxes
Suitable for the laying inside of conduits installed on or under plaster
Harmonised for use in Europe
Conform to the EU-Directive 2011/65/EU (RoHS).
Suitable for fixed Installations
Single core Halogen-free compound; HAR-certified
Harmonised European design with ◁HAR▷ testing mark
Conductor Cross Section: 0.75mm²
Cable Outer Diameter: 2.2 - 2.8mm
Core Colour: Green/Yellow
Number of conductors: 1
Conductors: Bare copper, acc. to IEC 60228 resp. EN 60228, class 5
Conductors: Bare copper, acc. to IEC 60228 resp. EN 60228, class 5
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Test Voltage, conductor/conductor 2 kV
Temperature range, Fixed Install: -40°C to 90°C
Outer Sheath Insulation: Halogen-free compound, cross-linked compound EI 5 acc. to EN 50363-5
Not shielded
Test Voltage, conductor/conductor 2 kV
Temperature range, Fixed Install: -40°C to 90°C
Outer Sheath Insulation: Halogen-free compound, cross-linked compound EI 5 acc. to EN 50363-5
Not shielded
Oil-resistant - No
Weather resistant - No
PWIS-free - Yes
UV-resistant - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
Halogen Free - Yes acc. EN 50525-1 Annex B
Low smoke gas emission and low corrosiveness of gases
Made in accordance with harmonised European design H05Z-K, with ◁HAR▷ testing mark
Available as ring, on coils or in large disposable cardboard boxes
Suitable for the laying inside of conduits installed on or under plaster
Harmonised for use in Europe
Conform to the EU-Directive 2011/65/EU (RoHS).
Suitable for fixed Installations
Cable Length: 2500M
Lapp Part Number: 4725002K
