Lapp H05Z-K 90°C & H07Z
H05Z-K 90°C
Halogen-free single core, harmonised
- Harmonised; halogen-free to protect human life, the environment and material assets
- H05Z-K 90°C, <HAR>, Halogen-free single core, harmonised, for wiring in control cabinets, nominal voltage 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- Halogen-free and harmonised (HAR)
- For expanded ambient temperatures
- see ÖLFLEX® HEAT 125 SC
-
4725041 | H05Z-K 90°C 1x0,5 RD | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm, Working temp. -40°C to 90°C
-
4725041K | H05Z-K 90°C EMBOSS 1x0,5 RD | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm, Working temp. -40°C to 90°C
-
4725042 | H05Z-K 90°C 1x0,75 RD | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm, Working temp. -40°C to 90°C
-
4725042K | H05Z-K 90°C EMBOSS 1x0,75 RD | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm, Working temp. -40°C to 90°C
-
4725043 | H05Z-K 90°C 1x1 RD | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm, Working temp. -40°C to 90°C
-
4725043K | H05Z-K 90°C EMBOSS 1x1 RD | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm, Working temp. -40°C to 90°C
-
4725051 | H05Z-K 90°C 1x0,5 WH | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm, Working temp. -40°C to 90°C
-
4725051K | H05Z-K 90°C EMBOSS 1x0,5 WH | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.5mm², Cable Outer Diameter: 2.1 - 2.6mm, Working temp. -40°C to 90°C
-

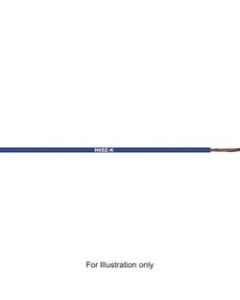

4725052 | H05Z-K 90°C 1x0,75 WH | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm -
4725052K | H05Z-K 90°C EMBOSS 1x0,75 WH | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 0.75mm², Cable Outer Diameter: 2.2 - 2.8mm, Working temp. -40°C to 90°C
-
4725053 | H05Z-K 90°C 1x1 WH | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm, Working temp. -40°C to 90°C
-
4725053K | H05Z-K 90°C EMBOSS 1x1 WH | Single Core CableHarmonised Halogen-Free, For Wiring in Control Cabinets, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.4 - 2.9mm, Working temp. -40°C to 90°C
