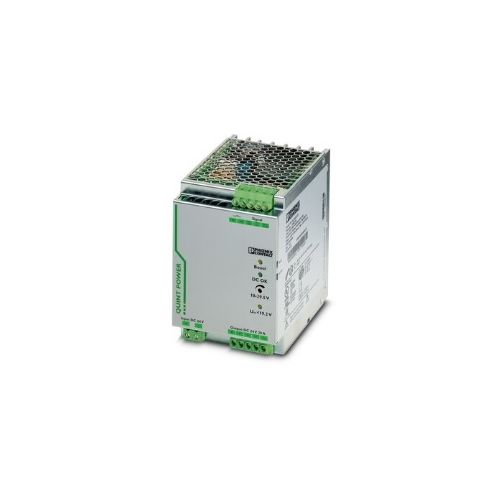

QUINT-PS/24DC/24DC/20 | 2320102 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved
| Complete Electronics Part No. | 2320102 |
|---|---|
| Manufacturers Part No. | 2320102 |
| Nominal Input Voltage: | 24 V DC |
| Nominal Output Voltage: | 24 V DC / 20 A |
| Output Setting Range: | 18 V DC to 29.5 V DC |
Description
DIN Rail DC/DC Converter
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Nominal input voltage range: 24 V DC
- Current Consumption: 28 A (24 V, IBOOST)
- Transient surge protection; Varistor
- Recommended breaker for input protection: 40 A ... 150A (Characteristics B, C, D, K)
- Input Connection method: Pluggable screw connection
- Nominal Output Voltage: 24 V DC ±1 %
- Setting range of the output voltage: 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
- Nominal Output current: 20 A
- Output Connection method: Pluggable screw connection
- LED signaling
- Housing Material: Metal (Aluminum (AlMg3))
- Operating temperature: -25°C ... 70°C (> 60 °C derating, 2.5 %/K, startup at -40°C)
- Width: 82 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 1700g
- Customs tariff number: 85044030
- GTIN: 4046356481892
- UL Approved
- Country of origin: India
