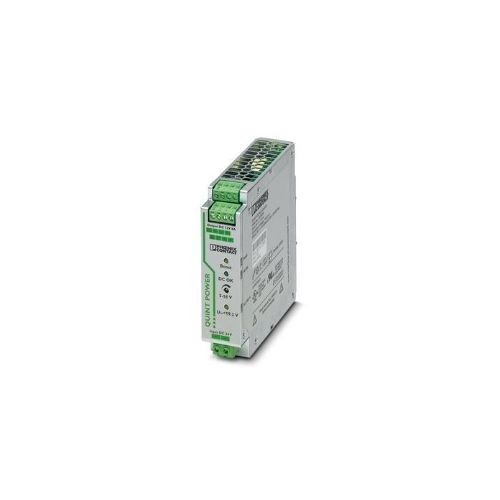

QUINT-PS/24DC/12DC/ 8 | 2320115 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC Nominal output voltage 12 V DC Plugable Screw connection, LED indicator, UL approved
| Complete Electronics Part No. | 2320115 |
|---|---|
| Manufacturers Part No. | 2320115 |
| Nominal Input Voltage: | 24 V DC |
| Nominal Output Voltage: | 12 V DC / 8 A |
| Output Setting Range: | 5 V DC to 18 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Nominal input voltage range: 24 V DC
- Current Consumption: 6 A (24 V, IBOOST)
- Transient surge protection; Varistor
- Input Fuse: 15 A (internal (device protection))
- Input Connection method: Pluggable screw connection
- Nominal Output Voltage: 12 V DC ±1 %
- Setting range of the output voltage: 5 V DC ... 18 V DC (> 12 V DC, constant capacity restricted)
- Nominal Output current: 8 A
- Output Connection method: Pluggable screw connection
- LED signaling
- Housing Material: Metal (Aluminum (AlMg3))
- Operating temperature: -25°C ... 70°C (> 60 °C derating, 2.5 %/K, startup at -40°C)
- Connection in parallel: Yes
- Connection in serial: Yes
- Width: 32 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 853g
- Customs tariff number: 85044030
- GTIN: 4046356482233
- UL Approved, Shipbuiling Approved
- Country of origin: India
