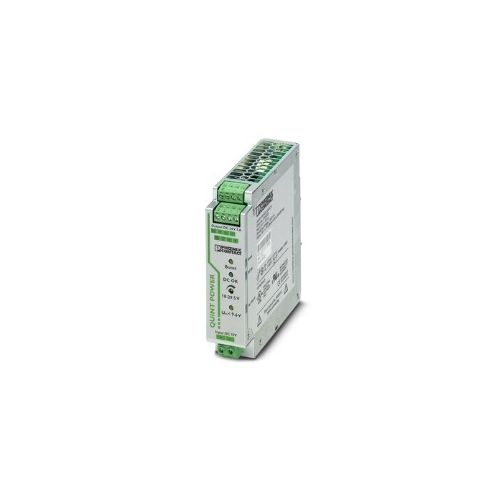

QUINT-PS/12DC/24DC/ 5 | 2320131 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 12 V DC Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved
| Complete Electronics Part No. | 2320131 |
|---|---|
| Manufacturers Part No. | 2320131 |
| Nominal Input Voltage: | 12 V DC |
| Nominal Output Voltage: | 24 V DC / 5 A |
| Output Setting Range: | 18 V DC to 29.5 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- SFB Technology (Selective Fuse Breaking)
- Nominal input voltage range: 12 V DC
- Current Consumption: 15 A (12 V, IBOOST)
- Input Fuse: 25 A (internal (device protection))
- Transient surge protector: Varistor
- Input Connection method: Pluggable screw connection
- Nominal Output Voltage: 24 V DC
- Setting range of the output voltage: 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
- Nominal Output current: 5 A
- Output Connection method: Pluggable screw connection
- LED signaling
- Housing Material: Aluminum (AlMg3)
- Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
- Connection in parallel: Yes
- Connection in serial: Yes (2 devices)
- Width: 32 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 700g
- Customs tariff number: 85044030
- GTIN: 4046356482240
- UL Approved
- Country of origin: China
