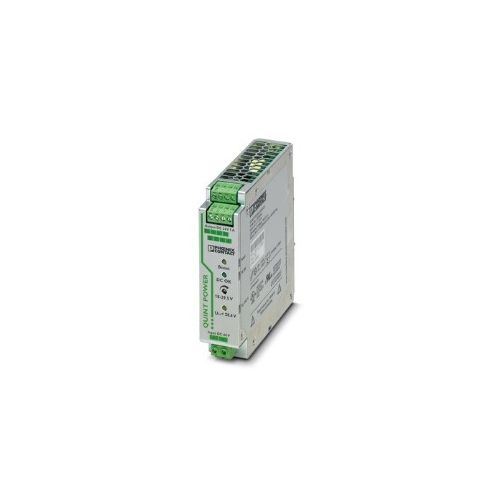

QUINT-PS/48DC/24DC/ 5 | 2320144 | DC/DC Converter

DIN Rail QUINT DC/DC Converter, Nominal input range 48 V DC Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved
More Information
Complete Electronics Part No. 2320144
Manufacturers Part No. 2320144
Nominal Input Voltage: 48 V DC
Nominal Output Voltage: 24 V DC / 5 A
Output Setting Range: 18 V DC to 29.5 V DC
Description

DIN Rail DC/DC Converter for DIN rail mounting

Primary-switched QUINT DC/DC converter

  • SFB Technology (Selective Fuse Breaking)
  • Nominal input voltage range: 48 V DC
  • Current Consumption: 3.5 A (48 V DC)
  • Input Fuse: 10 A ( slow blow, internal)
  • Transient surge protector: Varistor
  • Input Connection method: Pluggable screw connection
  • Nominal Output Voltage: 24 V DC
  • Setting range of the output voltage: 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
  • Nominal Output current: 5 A
  • Output Connection method: Pluggable screw connection
  • LED signaling
  • Housing Material: Aluminum (AlMg3)
  • Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
  • Connection in parallel: Yes
  • Connection in serial: Yes
  • Width: 32 mm
  • Height: 130 mm
  • Depth: 125 mm
  • Ingress protection: IP20
  • Weight (excluding packing): 700g
  • Customs tariff number: 85044030
  • GTIN: 4046356482257
  • UL Approved
  • Country of origin: China
