SMA Jacks
- SMA sub-miniature series are a popular general purpose high performance 50 ohm connector.
- SMA have a screw together coupling with versions available for use up to 11 GHz
- They feature gold plated bodies and centre contacts
- Reverse polarity versions are also available.
-
30-054-B3-AD | 30054B3AD | SMA Crimp Jack ( Nickel )SMA full crimp straight jack. Contact is gold plated and body is nickel plated, Suitable for use with RG174 and similar cables in group AD -

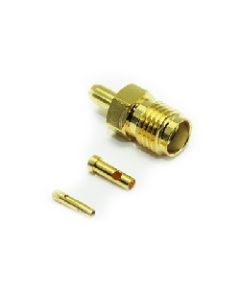

30-054-D3-AA | 30054D3AA | SMA Crimp / Crimp JackSMA full crimp straight jack. Contact and body are gold plated. Suitable for use with RG178 and similar cables in group AA -

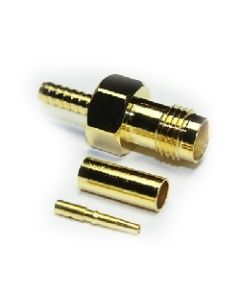

30-054-D3-AD | 30054D3AD | SMA Crimp / Crimp JackSMA full crimp straight jack. Contact and body are gold plated. Suitable for use with RG174 and similar cables in group AD -
30-054-D3-AE | 30054D3AE | SMA Crimp / Crimp JackSMA full crimp straight jack. Contact and body are gold plated. Suitable for use with RD316 and similar cables in group AE -
30-054-D3-AH | 30054D3AH | SMA Crimp / Crimp JackSMA full crimp straight jack. Contact and body are gold plated. Suitable for use with RG58 and similar cables in group AH -

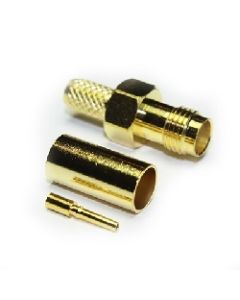

30-054-D3-AK | 30054D3AK | SMA Crimp / Crimp JackSMA full crimp straight jack. Contact and body are gold plated. Suitable for use with RG223 and similar cables in group AK -

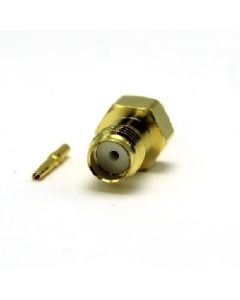

30-063-D3-HA | 30063D3HA | SMA Solder / Solder JackSMA full Solder straight jack. Contact and body are gold plated. Suitable for use with RG405 (0.085" semi -rigid and similar cables in group HA. -

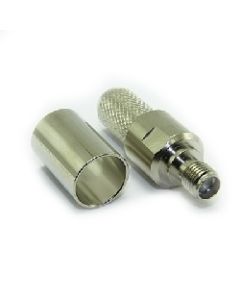

30-068-B3-DE | 30068B3DE | SMA Easy Fit / Crimp JackSMA straight jack with Easy Fit centre contact and crimped outer contact.. Suitable for use with Times LMR®400 and similar cables in group DE. -

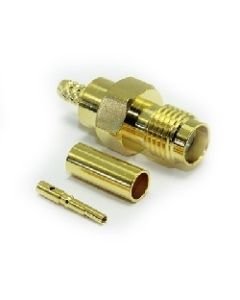

30-069-D3-AD | 30069D3AD | SMA Crimp / Crimp JackSMA full crimp straight jack. Contact and body are gold plated. Suitable for use with RG174 and similar cables in group AD -

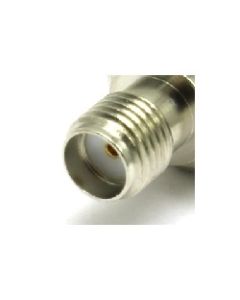

30-071-B3-0.13 | 30071B3013 | SMA Press Fit JackSMA Press Fit Jack is designed to press fit into an aluminium panel. There is a gold plated tab contact for soldering to the conductor. -
30-071-Q0 | 30071Q0 | SMA Press Mount JackSMA Jack with press mount body and gold plated solder tab centre contact which has a white bronze body that can be pressed fitted into an aluminium panel. -

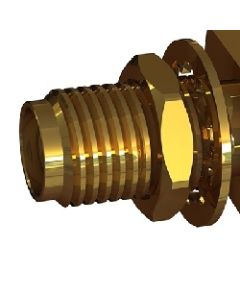

30-250-N3-AD | 30250N3AD | SMA Bulkhead Solder / Clamp JackSMA bulkhead mount solder clamp jack, rear mounted with a single flat on the body. Suitable for RG174 and similar cables in group AD.
