30-068-B3-DE | 30068B3DE | SMA Easy Fit / Crimp Jack

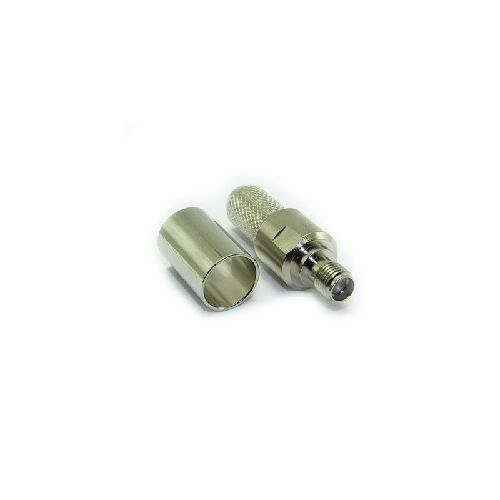

SMA straight jack with Easy Fit centre contact and crimped outer contact.. Suitable for use with Times LMR®400 and similar cables in group DE.
More Information
Complete Electronics Part No. 30068B3DE
Manufacturers Part No. 30-068-B3-DE
Type Straight
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 12.5GHz
  • Dielectric Withstand Voltage 750 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-15
  • RoHS3 Compliant
  • Centre Contact Termination: Easy
  • Outer Contact Termination: Crimp
  • Mating Cycles: 100
  • Contact Retention: 27N min
  • Cable Retention: 150N min
  • Weight: 11.6g
  • Mating Force: 23Ncn
  • Un-Coupling Force: 23Ncn
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
