30-054-D3-AE | 30054D3AE | SMA Crimp / Crimp Jack

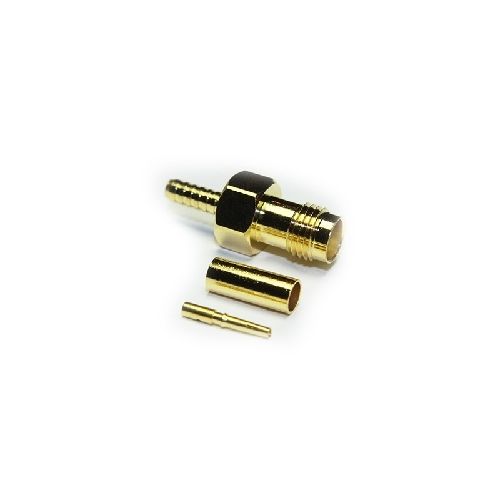

SMA full crimp straight jack. Contact and body are gold plated. Suitable for use with RD316 and similar cables in group AE
More Information
Complete Electronics Part No. 30054D3AE
Manufacturers Part No. 30-054-D3-AE
Type Straight
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 12.5GHz
  • Dielectric Withstand Voltage 750 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-15
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention: 150N min
  • Weight: 3.7g
  • Mating Force: 23Ncn
  • Un-Coupling Force: 23Ncn
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
