30-071-B3-0.13 | 30071B3013 | SMA Press Fit Jack

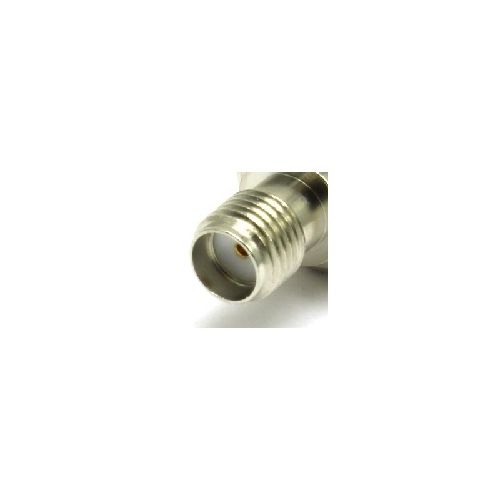

SMA Press Fit Jack is designed to press fit into an aluminium panel. There is a gold plated tab contact for soldering to the conductor.
More Information
Complete Electronics Part No. 30071B3013
Manufacturers Part No. 30-071-B3-0.13
Type Panel / Bulkhead Mount
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 12.5GHz
  • Dielectric Withstand Voltage 750 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-15
  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: Press Fit
  • Mating Cycles: 100
  • Contact Retention: 27N min
  • Weight: 3.5g
  • Mating Force: 23Ncn
  • Un-Coupling Force: 23Ncn
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
