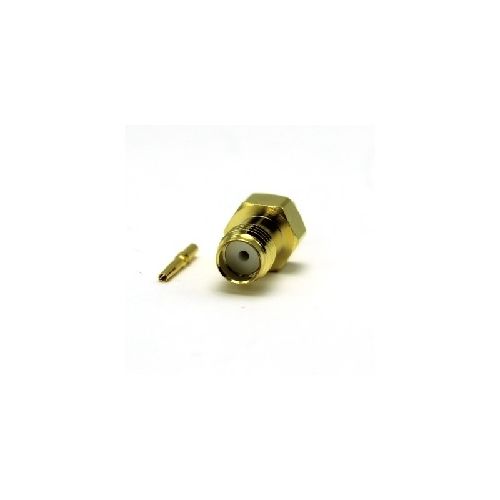

30-063-D3-HA | 30063D3HA | SMA Solder / Solder Jack
SMA full Solder straight jack. Contact and body are gold plated. Suitable for use with RG405 (0.085" semi -rigid and similar cables in group HA.
| Complete Electronics Part No. | 30063D3HA |
|---|---|
| Manufacturers Part No. | 30-063-D3-HA |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 100
- Contact Retention: 27N min
- Cable Retention: 200N min
- Weight: 3.7g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
