SMB 50 ohm sub-miniature connector
General purpose RF connector
- Meeting IEC 60169-10.
- Smaller than SMA they feature a snap together coupling and are suitable for applications up to 4 GHz.
- SMB have a gold plated centre and outer contact and are suited to applications in all industries.
- In common with the similar screw coupled SMC series, the centre contacts of SMB are reversed when compared with the larger SMA, with the plug having the female contact.
-

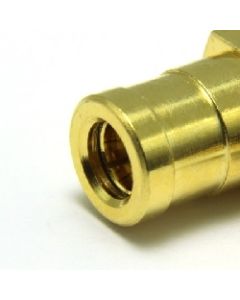

32-001-D3-AH | 32001D3AH | SMB Straight Solder / Clamp PlugThe gold plated centre contact is soldered and braid and jacket are clamped. Suitable for use with RG58 and similar cables in group AH. -

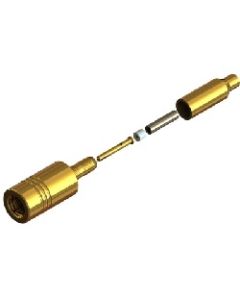

32-005-D3-AA | 32005D3AA | SMB Straight Crimp / Crimp PlugSMB 50 ohm straight full crimp plug (5 Part). With gold plated contact and body. Suitable for use with RG178 and similar cables in group AA -

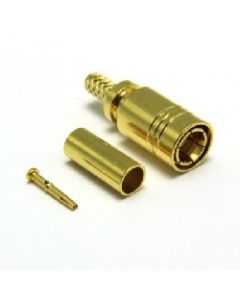

32-005-D3-AB | 32005D3AB | SMB Straight Crimp / Crimp PlugThis 50 ohm connector is adapted to fit 75 ohm cable. With gold plated contact and body. Suitable for use with RG179 and similar cables in group AB. -

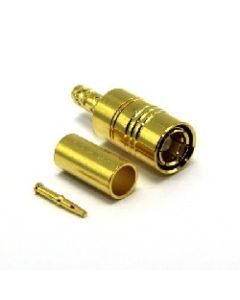

32-005-D3-AD | 32005D3AD | SMB Straight Crimp / Crimp PlugSMB 50 ohm straight full crimp plug, Contact and crimp sleeve are annealed, Suitable for use with RG174 and similar cables in group AD. -
32-005-D3-AE | 32005D3AE | SMB Straight Crimp / Crimp PlugSMB 50 ohm straight full crimp plug, Contact and crimp sleeve are annealed, Suitable for use with RD316 and similar cables in group AE. -

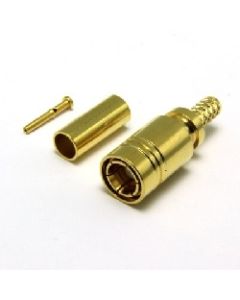

32-005-D3-AH | 32005D3AH | SMB Straight Crimp / Crimp PlugSMB 50 ohm straight full crimp plug, Contact and crimp sleeve are annealed, Suitable for use with RG58 and similar cables in group AH -
32-005-D3-BG | 32005D3BG | SMB Straight Crimp / Crimp PlugSMB 50 ohm straight full crimp plug, This 50 ohm connector is adapted to fit 75 ohm cable,. Suitable for use with RA8000 and similar cables in group BG -
32-010-D0-BD | 32010D0BD | SMB Straight Crimp / Crimp PlugSMB 50 ohm indent straight full crimp plug, This 50 ohm connector is adapted to fit 75 ohm cable,. Suitable for use with BT3002 and similar cables in group BD -
32-014-D3-HC | 32014D3HC | SMB Straight Solder / Solder PlugThe contact is soldered to the centre conductor and the body is soldered to the cable shield. For use with RG401 (0.250") and similar cables in group HC. -
32-054-B3-AB | 32054B3AB | SMB Straight Crimp / Crimp JackSMB 50 ohm straight full crimp Jack, This 50 ohm connector is adapted to fit 75 ohm cable,. Suitable for use with RG 179 and similar cables in group AB -
32-054-B3-AD | 32054B3AD | SMB Straight Crimp / Crimp JackSMB 50 ohm istraight full crimp Jack, Contact and crimp sleeve are annealed, Suitable for use with RG 174 and similar cables in group AD -

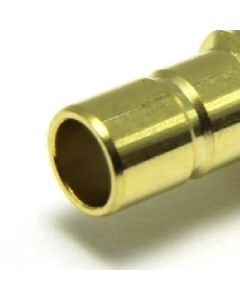

32-054-B3-AE | 32054B3AE | SMB Straight Crimp / Crimp JackSMB 50 ohm straight full crimp Jack, Contact and crimp sleeve are annealed, Suitable for use with RD 316 and similar cables in group AE
