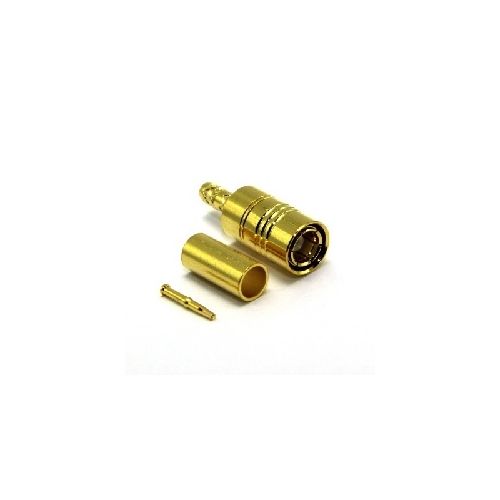

32-005-D3-AD | 32005D3AD | SMB Straight Crimp / Crimp Plug

SMB 50 ohm straight full crimp plug, Contact and crimp sleeve are annealed, Suitable for use with RG174 and similar cables in group AD.
More Information
Complete Electronics Part No. 32005D3AD
Manufacturers Part No. 32-005-D3-AD
Male/Female: Plug
Type Straight
Impedance 50 Ohm
Working Frequency Up To 4.5 GHZ
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 4GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-10
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight:
  • Mating Force: 62N max
  • Un-Coupling Force: 62N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP30

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Phosphor Bronze
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
