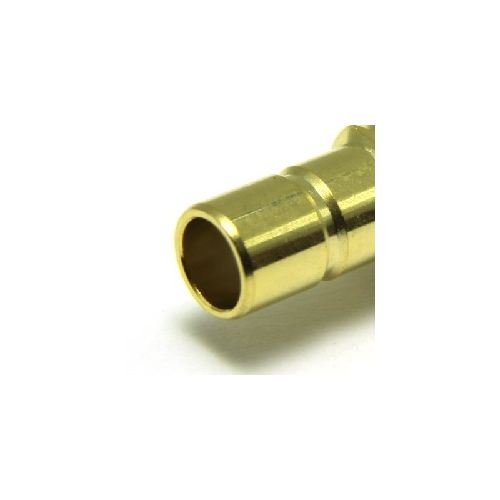

32-054-B3-AD | 32054B3AD | SMB Straight Crimp / Crimp Jack

SMB 50 ohm istraight full crimp Jack, Contact and crimp sleeve are annealed, Suitable for use with RG 174 and similar cables in group AD
More Information
Complete Electronics Part No. 32054B3AD
Manufacturers Part No. 32-054-B3-AD
Male/Female: Jack
Type Straight
Impedance 50 Ohm
Working Frequency Up To 4.5 GHZ
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 4GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-10
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight:
  • Mating Force: 62N max
  • Un-Coupling Force: 62N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP30

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
