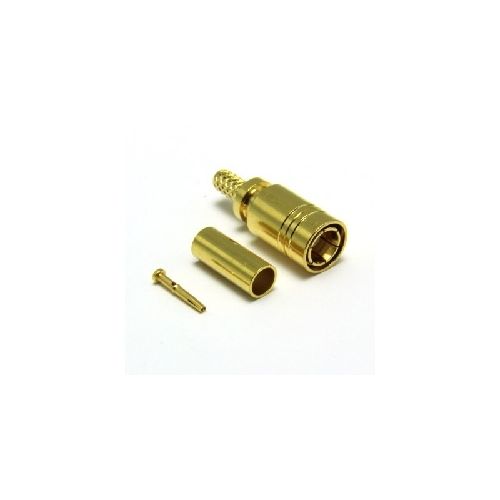

32-005-D3-AB | 32005D3AB | SMB Straight Crimp / Crimp Plug

This 50 ohm connector is adapted to fit 75 ohm cable. With gold plated contact and body. Suitable for use with RG179 and similar cables in group AB.
More Information
Complete Electronics Part No. 32005D3AB
Manufacturers Part No. 32-005-D3-AB
Male/Female: Plug
Type Straight
Impedance 50 Ohm
Working Frequency Up To 4.5 GHZ
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 4GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-10
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight:
  • Mating Force: 62N max
  • Un-Coupling Force: 62N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP30

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Phosphor Bronze
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
