SMB 50 ohm sub-miniature connector
General purpose RF connector
- Meeting IEC 60169-10.
- Smaller than SMA they feature a snap together coupling and are suitable for applications up to 4 GHz.
- SMB have a gold plated centre and outer contact and are suited to applications in all industries.
- In common with the similar screw coupled SMC series, the centre contacts of SMB are reversed when compared with the larger SMA, with the plug having the female contact.
-

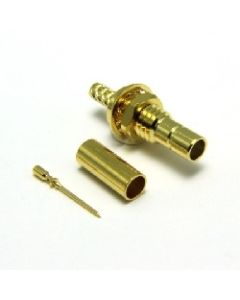

32-254-A3-AD | 32254A3AD | Rear Mount Bulkhead Crimp JackMB 50 ohm bulkhead mount full crimp jack, rear mounted with a single flat on the body, Suitable for RG174 and similar cables in group AD. -
32-254-D3-AA | 32254D3AA | Rear Mount Bulkhead Crimp JackMB 50 ohm bulkhead mount full crimp jack, rear mounted with a single flat on the body, Suitable for RG178 and similar cables in group AA -
32-254-D3-AB | 32254D3AB | Rear Mount Bulkhead Crimp JackMB 50 ohm bulkhead mount full crimp jack, rear mounted, adapted for use with 75 ohm cable Suitable for RG179 and similar cables in group AB -

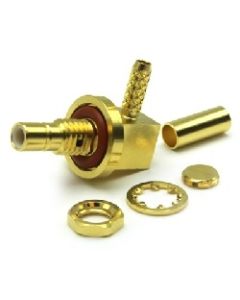

32-271-1-D3-AD | 322711D3AD | R/A Bulkhead Solder/Crimp JackSMB 50 ohm Right Angle Rear Mounted bulkhead mount solder crimp jack IP68 unmated, Hermetically Sealed and tested to 50m RG174 and similar cables in group AD -

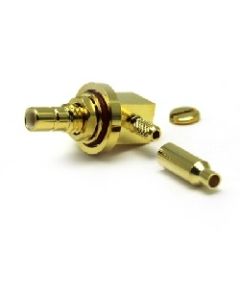

32-271-D10-AA | 32271D10AA | R/A Bulkhead Solder/Crimp JackSMB 50 ohm Right Angle Rear Mounted bulkhead mount solder crimp jack IP68 unmated, Hermetically Sealed and tested to 50m, RG178 and similar cables in group AA -

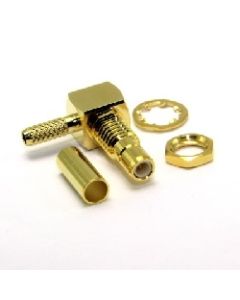

32-271-D3-AD | 32271D3AD | R/A Bulkhead Solder/Crimp JackMB 50 ohm right angle bulkhead jack. With gold plated body and contact, Suitable for use with RG174 and similar cables in group AD. -

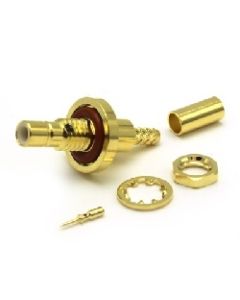

32-290-D10-AD | 32290D10AD | R/A Bulkhead Crimp JackSMB 50 ohm Right Angle Rear Mounted bulkhead mount solder crimp jack IP68 unmated, Hermetically Sealed and tested to 50m RG174 and similar cables in group AD -

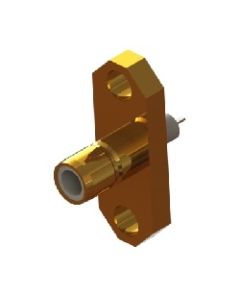

32-369-D3 | 32369D3 | 2 Hole Flange Mounting JackSMB 50 ohm 2 hole flange mount jack (Tab Contact). The connector body and tab contact are gold plated.
