Interface Converters, Gateways
From RS-232 / 422 / 485 to Ethernet
- Interface converters and device servers enable the protocol-transparent conversion of serial interfaces, such as RS-232, RS-422, and RS-485, to other standards, e.g., Ethernet (RJ45).
- Gateways and protocol converters convert various fieldbus and Ethernet protocols (e.g., PROFIBUS to PROFINET)
- 256-bit AES encryption and authentication mechanisms
- Wide operating temperature range (-40°C ... +70°C) and approval for hazardous areas
- Troubleshoot problems quickly and easily with the extended diagnostic functions
-

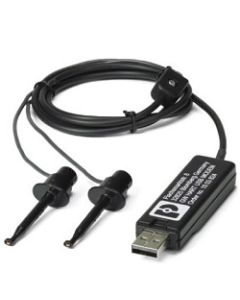

Cable adapter - GW HART USB MODEM | 1003824USB HART modem cable for communication between a PC and HART devices, cable length: 1m. -
EM-CAN-GATEWAY-IFS | 2901504Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via CANopen -

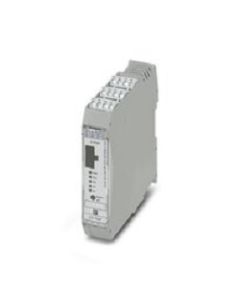

EM-ETH-GATEWAY-IFS | 2901988 | InterfaceGateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via EtherNet/IP™. -
EM-MODBUS-GATEWAY-IFS | 2901588 | InterfaceGateway for the connection of up to 32 INTERFACE system devices via Modbus/TCP to a higher-level controller -
EM-PB-GATEWAY-IFS | 2297620 | Data InterfaceGateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via PROFIBUS DP -

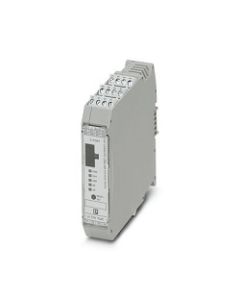

EM-PNET-GATEWAY-IFS | 2904472Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via PROFINET -
FL COMSERVER BASIC 232/422/485 | 2313478 | ConverterSerial device server for converting serial 232/422/485 to Ethernet, supports TCP, UDP, COM port redirector, Configuration via web-based management -

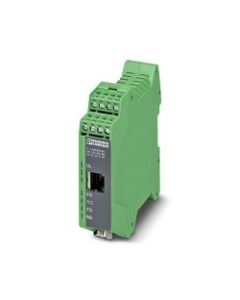

FL COMSERVER UNI 232/422/485 | 2313452 | ConverterSerial device server for converting serial 232/422/485 to Ethernet, supports TCP, UDP, Modbus gateway, and PPP applications, COM port redirector -

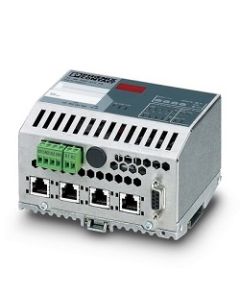

FL NP PND-4TX IB | 2985974 | ProxyProxy for PROFINET-RT-IRT, G4 functionality, INTERBUS proxy with integrated 4-port switch -

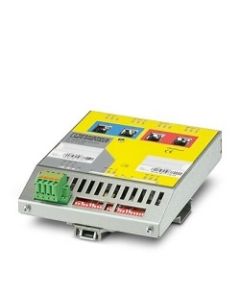

FL PN/PN SDIO-2TX/2TX | 2700651 | Safety GatewaySafe PROFINET gateway, IP20 protection, for connecting two PROFINET systems, up to 128 byte standard I/O process data via PROFINET -
FL TIMESERVER NTP | 1107132 | WirelessGNSS receiver and NTP (Network Time Protocol) for Ethernet networks, receives time, date, and location via GPS, GLONASS, or Galileo -

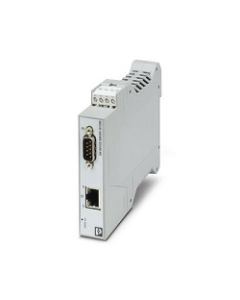

GW DEVICE SERVER 1E/1DB9 | 2702758 | Interface ConverterSerial device server for converting serial data (RS-232/422/485) to Ethernet data (RJ45). Supports TCP and UDP protocols, one RJ45 ports and one D-SUB 9 port
