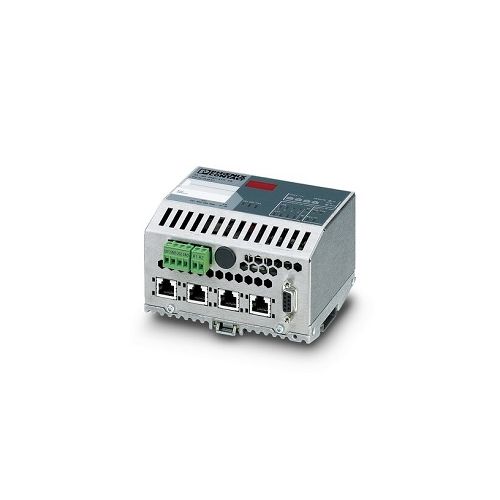

FL NP PND-4TX IB | 2985974 | Proxy
Proxy for PROFINET-RT-IRT, G4 functionality, INTERBUS proxy with integrated 4-port switch
| Complete Electronics Part No. | 2985974 |
|---|---|
| Manufacturers Part No. | 2985974 |
| Interface Converters etc | Proxy |
Description
Proxy for PROFINET-RT-IRT
- G4 functionality, INTERBUS proxy with integrated 4-port switch
- Data exchange, diagnostics, and parameterization are via the PROFINET protocol
- LLDP support for topology detection
- PROFINET update rates ≥ 1 ms
- Supply Voltage: 24 V DC
- Supply Voltage range: 18.5...30.2 V DC (as an alternative or redundant)
- Typical current consumption: 350 mA
- Power Connection method: :Via COMBICON, max. conductor cross section 2.5 mm²
- Ethernet Connection: 5 x RJ45, 10/100 Mbps
- Interbus Connection: 1 x 9 pos. D-SUB Socket
- 7-segment display/ diagnostics LEDs
- Width: 128mm
- Height: 95mm
- Depth: 69mm
- Ingress protection: IP20
- Din Rail Mounting
- Operating Temperature: -25 °C ... 60 °C
- Weight per Piece (excluding packing): 737.6 g
- Part Number 2985974
- Customs tariff number: 85176200
- Country of origin: DE
- UL Listed
