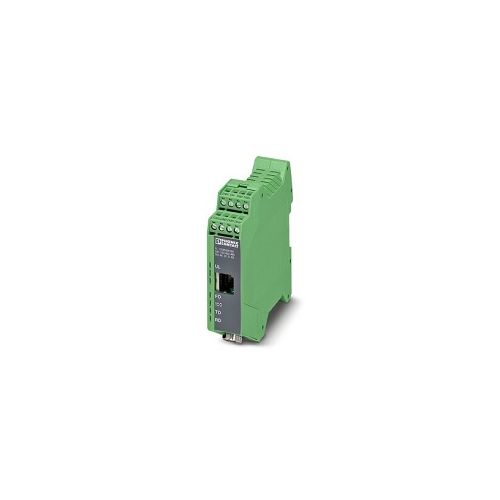

FL COMSERVER BASIC 232/422/485 | 2313478 | Converter
Serial device server for converting serial 232/422/485 to Ethernet, supports TCP, UDP, COM port redirector, Configuration via web-based management
| Complete Electronics Part No. | 2313478 |
|---|---|
| Manufacturers Part No. | 2313478 |
| Interface Converters etc | Interface Converters |
Description
Interface Converter - FL COMSERVER Basic 232/422/485
- Supports TCP and UDP applications,
- Configuration via web-based management
- Software for virtual COM ports supplied as standard
- Supply Voltage: 19.2...28.8 V AC/DC
- Supply Voltage: 22.8...25.2 V DC (as an alternative or redundant)
- Typical current consumption: 100 mA (at 24 V DC)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Web-based management, SNMP, emergency exit with Telnet and serial
- Ethernet interface, 10/100Base-T(X) RJ45 (Shielded) accordance with IEEE 802.3
- V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
- D-SUB 9 plug
- RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
- RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
- Supported browsers: Netscape Communicator versions 4.5 and up or Internet Explorer versions 5.5 and up
- Width: 22.5mm
- Height: 99mm
- Depth: 116mm
- Housing material: PA 6.6-FR
- Colour: Green
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -25 °C ... 60 °C
- Weight per Piece (excluding packing): 176.5 g
- Part Number 2313478
- Customs tariff number: 85176200
- Country of origin: DE
