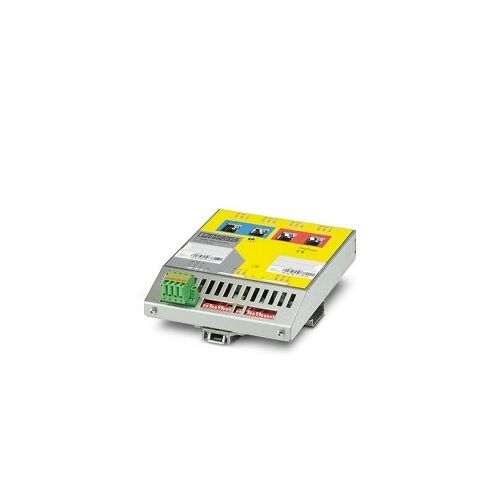

FL PN/PN SDIO-2TX/2TX | 2700651 | Safety Gateway
Safe PROFINET gateway, IP20 protection, for connecting two PROFINET systems, up to 128 byte standard I/O process data via PROFINET
| Complete Electronics Part No. | 2700651 |
|---|---|
| Manufacturers Part No. | 2700651 |
| Interface Converters etc | Gateway |
Description
Safety Gateway
- For connecting two PROFINET systems
- Up to 128 byte standard I/O process data via PROFINET
- Up to 11 byte safe I/O process data via PROFIsafe
- Supply Voltage: 24 V DC
- Supply Voltage Range: 18.5 V DC....30 V DC
- Spring cage connection
- Width: 130 mm
- Height: 27.8mm
- Depth: 145.8mm
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -25 °C ... 60 °C
- Weight per Piece (excluding packing): 727.5 g
- Part Number 2700651
- Customs tariff number: 85176200
- Country of origin: DE
