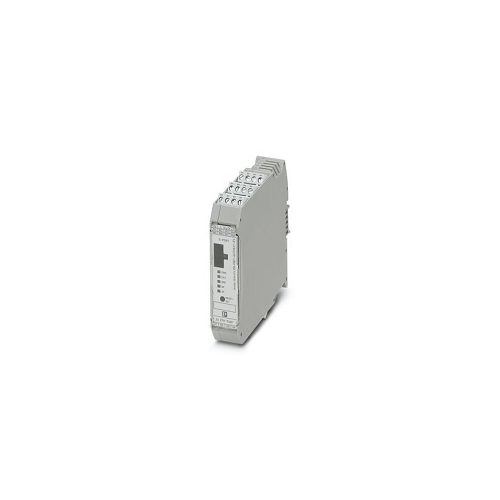

EM-PNET-GATEWAY-IFS | 2904472
Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via PROFINET
| Complete Electronics Part No. | 2904472 |
|---|---|
| Manufacturers Part No. | 2904472 |
| Interface Converters etc | Gateway |
Description
Data interface
- Connection of up to 32 INTERFACE system devices
- system devices are connected to the Gateway via DIN rail connectors (Supplied)
- Supply Voltage: 24 V DC
- Power Connection: Screw
- 8 x Digital Inputs
- 4 x Digital Switching outputs
- Programming connection: S-PORT (Socket)
- Number of programming connections: 1
- PROFINET Connector: RJ45 x 2
- Interface Data rate: 76800 Baud
- Serial transmission speed: 76.8 Kbps
- Ethernet speed: 10/100 Mbps
- Width: 22.5mm
- Height: 107.8mm
- Depth: 113.8mm
- Housing material: Polyamide PA non-reinforced
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -35 °C ... 50 °C
- Supplied with DIN Rail connectors
- Weight per Piece (excluding packing): 146.61 g
- Part Number 2904472
- Customs tariff number: 85176200
- Country of origin: DE
