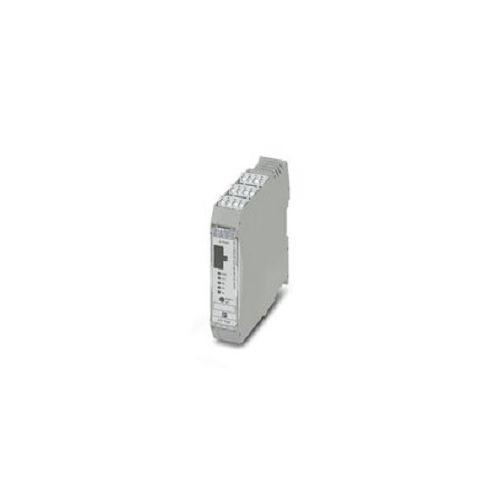

EM-MODBUS-GATEWAY-IFS | 2901588 | Interface
Gateway for the connection of up to 32 INTERFACE system devices via Modbus/TCP to a higher-level controller
| Complete Electronics Part No. | 2901588 |
|---|---|
| Manufacturers Part No. | 2901588 |
| Interface Converters etc | Gateway |
Description
Data interface
Connection of up to 32 INTERFACE system devices
- System devices are connected to the Gateway via DIN rail connectors (Supplied)
- Supply Voltage: 24 V DC
- Power Connection: Screw
- 8 x Digital Inputs
- 4 x Digital Switching outputs
- Programming connection: S-PORT (Socket)
- Number of programming connections: 1
- Modbus/TCP Connector: RJ45 x 1
- Interface Data rate: 76800 Baud
- Serial transmission speed: 76.8 Kbps
- Width: 22.5mm
- Height: 107.8mm
- Depth: 113.8mm
- Housing material: Polyamide PA non-reinforced
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -35 °C ... 50 °C
- Weight per Piece (excluding packing): 194.2 g
- Part Number 2901528
- Customs tariff number: 85176200
- Country of origin: DE
