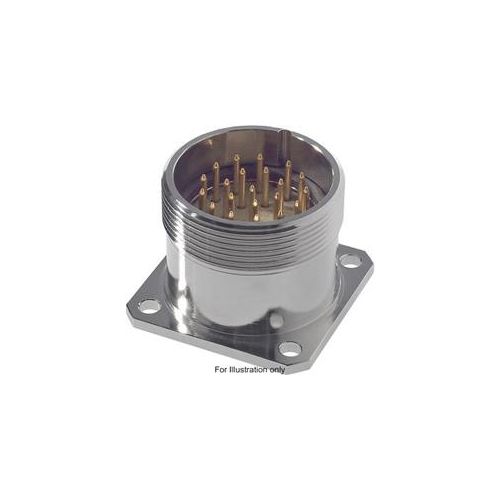

00008939 | Lapp Circular Connector | R 3.0 B2
Lapp Epic® Male Circular Panel /Wall mount Connector with Solder Termination, Number of Contacts:1- 26
| Complete Electronics Part No. | 8939 |
|---|---|
| Manufacturers Part No. | 8939 |
| Type: | Panel Mount Connector |
| Lapp Circular Range: | R3.0 B2 |
| Number of poles | 1 - 26 |
| Male/Female: | Male |
| Termination: | Solder |
| Mounting: | Panel Mount |
Description
Part Number 00008939
Lapp Epic® Male Circular Panel /Wall mount Connector with Solder Termination
- Number of Contacts:1- 26
- E-Part
- Rated Voltage: 24V AC / 60V DC
- Rated Current: 7.5 A
- Contact Material: Copper Alloy, Gold Plated
- Termination: Solder
- Housing:Nickel Plated Copper Alloy
- Insert: Thermoplastic
- Ingress Protection: IP67
- Temperature Range: -40°C to +100deg;C, Short Term up to +125deg;C
- Fastening Type: Ø 3.2mm x4
- Compact and reliable connector for multicore signal cables
