N Type Plugs
N Type are a rugged screw coupled connector
- Mid sized series of connectors
- With versions available for use up to 11 GHz.
- N Type connector interface is according to Mil 30912 and are sealed to IP67 when mated.
- 75 ohm versions of N Type are also available.
Note : 50 and 75 Ohm version of N Type connectors are not compatible and permanent damage to the connector may occur if mated.
-

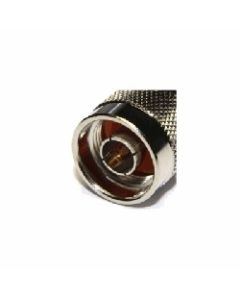

25-001 Times LMR®1200 | 25001 | Easy Fit/Top Hat Clamp PlugN Type 50 ohm straight plug. With Easy Fit termination, No specialised tooling required, For use with Times LMR®1200 and cables in group DJ -

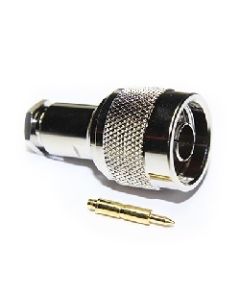

25-001-AO-AM | 25001AOAM | N Type Solder / Clamp PlugN Type 50 ohm solder clamp straight plug. Braid and jacket are secured with a top hat clamp. Suitable for use with RG11 and similar cables in group AM. -
25-001-B3-AH | 25001B3AH | N Type Solder / Clamp PlugN Type 50 ohm solder clamp straight plug. Braid and jacket are secured with a top hat clamp. Suitable for use with RG11 and similar cables in group AM. -

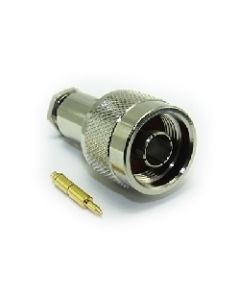

25-001-B3-AK | 25001B3AK | N Type Solder / Clamp PlugN Type 50 ohm solder clamp straight plug. Braid and jacket are secured with a top hat clamp. Suitable for use with RG223 and similar cables in group Ak. -

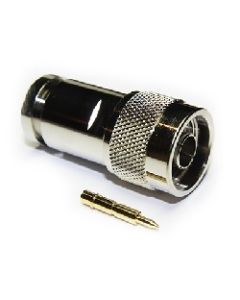

25-001-B3-AN | 25001B3AN | N Type Solder / Clamp PlugN Type 50 ohm solder clamp straight plug. Braid and jacket are secured with a top hat clamp. Suitable for use with RG213 and similar cables in group AN. -

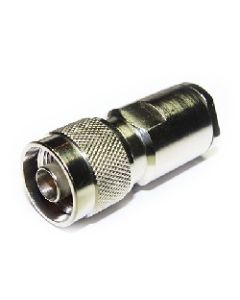

25-001-B3-DE | 25001B3DE | N Type Solder / Clamp PlugN Type 50 ohm solder clamp straight plug. Braid and jacket are secured with a top hat clamp. Suitable for use with Times LMR®400 and similar cables in group DE. -
25-001-B6-AI | 25001B6AI | N Type Solder / Clamp PlugN Type 75 ohm solder clamp straight plug. Braid and jacket are secured with a top hat clamp. For use with RG59 and similar cables in group AI -

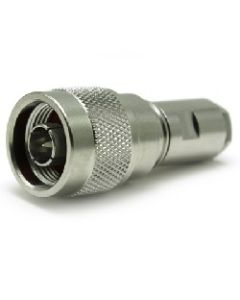

25-001-P3-AW | 25001P3AW | N Type Crimp / Clamp PlugN Type 50 ohm crimp clamp straight plug. Braid and jacket are secured with a top hat clamp. For use with cables in group AW -

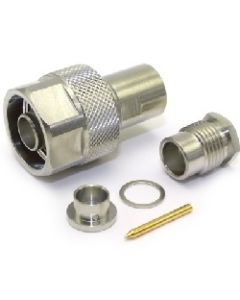

25-001-Q3-1-AH | 25001Q31AH | N Type Solder / Clamp PlugN Type 50 ohm solder clamp straight plug. Braid is soldered and secured with a clamp. Suitable for use with RG401 and similar cables in group AH. -

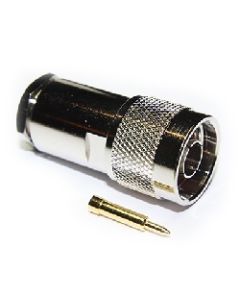

25-002-B3-AN | 25002B3AN | N Type Solder / Clamp PlugN Type 50 ohm solder clamp straight plug. Braid Jacket are secured with a clamp. Suitable for use with RG213 and similar cables in group AN. -

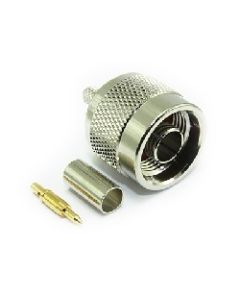

25-005-B3-AH | 25005B3AH | N Type Crimp / Crimp PlugN Type 50 ohm full crimp straight plug, centre contact and crimp sleeve are annealed. Suitable for use with RG58 and similar cables in group AH. -

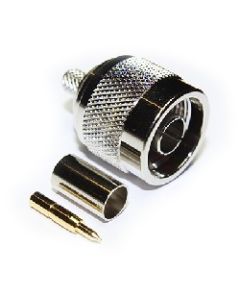

25-005-B3-AK | 25005B3AK | N Type Crimp / Crimp PlugN Type 50 ohm full crimp straight plug, centre contact and crimp sleeve are annealed. Suitable for use with RG223 and similar cables in group AK.
