Type 54 Connectors
Type 54 connectors
- A variant of the 75 ohm DIN 1.0/2.3 series of RF connectors.
- These micro miniature connectors are designed to meet the British Telecom RC9333 specificaton and use the same tooling and assembly methods as the Type 43 series
- Used in Telecom applications the Type 54 connectors feature a push-pull coupling and are fully intermateable with the DIN 1.0/2.3 series.
-

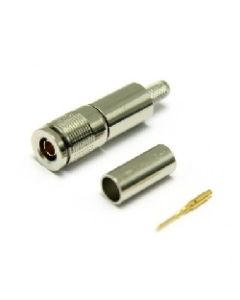

24-005-B6-BD | 24005B6BD | Type 54 P54/5B Straight Crimp PlugType 54 straight full crimp plug, Centre contact and crimp sleeve are annealed, Suitable for use with BT 3002 and similar cable in group BD. -

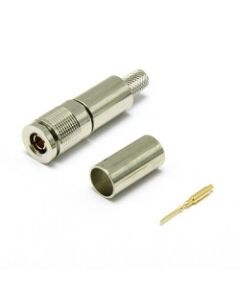

24-005-B6-BF | 24005B6BF | Type 54 P54/7B Straight Crimp PlugType 54 straight full crimp plug, Centre contact and crimp sleeve are annealed, Suitable for use with BT 7000 and similar cable in group BF. -

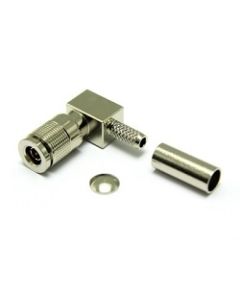

24-104-B6-BD | 24104B6BD | Type 54 P54/5A Right Angle PlugType 54 right angle solder crimp plug with gold plated centre and outer contact. Suitable for use with BT 3002 and similar cable in group BD. -

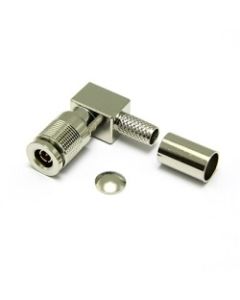

24-104-B6-BF | 24104B6BF | Type 54 P54/7A Right Angle PlugType 54 right angle solder crimp plug with gold plated centre and outer contact. Suitable for use with BT 7000 and similar cable in group BF. -

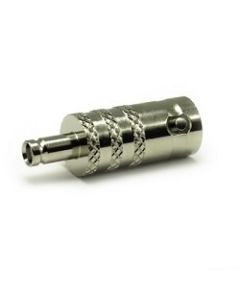

74-1052-500 | 741052500 | BNC Jack to Din 1.0/2.3 JackInter-Series adaptor for connection between different connector families. BNC Jack to Din 1.0/2.3 Jack 75 Ohm 6 Ghz Straight Adaptor -

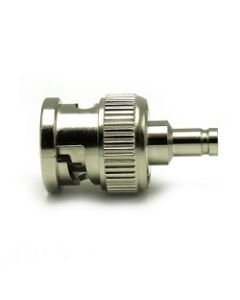

74-1052-511-B36 | 741052511B36 | BNC Plug to Din1.0/2.3 JackInter-Series adaptor for connection between different connector families. BNC Plug to Din 1.0/2.3 Jack 75 Ohm 6 Ghz Straight Adaptor -
74-1052-534-B36 | 741052534B36 | BNC Jack to Din1.0/2.3 PlugInter-Series adaptor for connection between different connector families. BNC Jack to Din 1.0/2.3 Plug 75 Ohm 6 Ghz Straight Adaptor
