Large multi range cable grommets for KEL 183
Large flexible cable grommets KTMB 183
- Multi-range for cable diameters of up to 75 mm
- Suitable for cable entry frames KEL 183
- These multi-range grommets are not split
- Defined area for pushing the cable through
- Cut size = cable diameter minus 10 mm
- Material: Elastomer
- Colour: grey (similar RAL 7035)
- Temperature: -40°C to 100 °C (static)
- Properties: Halogen-free, Silicone-free
Split cable entry frame KEL 183
-

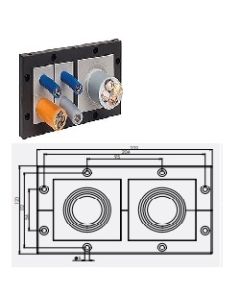

47200 | KEL183/2 | Entry FrameCable Entry Frame, Screw type mounting, Grommets: 2 x KTMB 183, Frame Dimensions, Length 222mm, Width 120mm, Height: 17mm
-
47200.200 | KEL183/2 V2A | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 2 x KTMB 183, Frame Dimensions, Length 222mm, Width 120mm, Height: 17mm
-
47220 | KEL183/5 black | Entry FrameCable Entry Frame, Screw type mounting, Grommets: 1 x KTMB 183 + 4 x KT Large, Frame Dimensions, Length 222mm, Width 120mm, Height: 17mm
-
47220.200 | KEL183/5 black V2A | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 1 x KTMB 183 + 4 X kt Large, Frame Dimensions, Length 222mm, Width 120mm, Height: 17mm
-

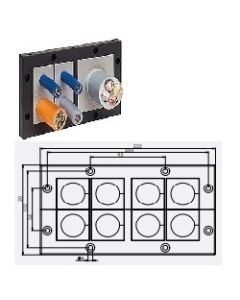

47240 | KEL183/8 black | Entry FrameCable Entry Frame, Screw type mounting, Grommets: 8 x KT Large, Frame Dimensions, Length 222mm, Width 120mm, Height: 17mm
-
47240.200 | KEL183/8 black V2A | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 8 x KT Large, Frame Dimensions, Length 222mm, Width 120mm, Height: 17mm
-
icotek 41410 | KTMB-O grey | GrommetGrommet for KEL 183, Clamping Range: Blank Grommet, Material: Elastomer, Flame Class: UL94-V0, self-extinguishing
-
icotek 41415 | KTMB-P grey | GrommetGrommet for KEL 183, Clamping Range: 34 - 44mm, Material: Elastomer, Flame Class: UL94-V0, self-extinguishing
-
icotek 41420 | KTMB-Q grey | Grommet
Grommet for KEL 183, Clamping Range: 44 - 54mm, Material: Elastomer, Flame Class: UL94-V0, self-extinguishing
-
icotek 41425 | KTMB-R grey | Grommet
Grommet for KEL 183, Clamping Range: 54 - 64mm, Material: Elastomer, Flame Class: UL94-V0, self-extinguishing
-
icotek 41430 | KTMB-S grey | GrommetGrommets for KEL 183, Clamping Range: 64 - 75mm, Material: Elastomer, Flame Class: UL94-V0, self-extinguishing
