Switched & Interlocked Sockets
OMNIA System
Flush and surface mounting modular system
GENERAL DESCRIPTION
Highly suited to premises that require industrial sockets but where protrusion from the wall must be kept to a minimum
The OMNIA System includes:
- A flush mounting box
- A surface mounting
The flush mounting box, is suitable for walled installations, can be combined both horizontally and vertically together thanks to a special coupling insert. This also allows the cable to move easily from one box to the next.
The wall mounting box is designed for small external installations IP55.
In the same flush or surface mounting box 16A and 32A interlocked-switch socket outlets in OMNIA Series IP44 or IP55 can be mounted.
VERSIONS
Both flush and surface mounting boxes can house:
- A flush mounting interlocked-switch socket outlet,
OMNIA series from 16 to 32A, IP44 or IP67 - A consumer unit
up to 6 DIN modules - A blank cover
to provide a junction box
The design of the OMNIA System box enables it to change its functions as required, for example changing from a junction box to a consumer unit, from a consumer unit to an interlocked-switch socket outlet, etc.
STRUCTURAL CHARACTERISTICS
Flush mounting box
- A single box can be used for housing any of the interlocked-switch socket outlets of the OMNIA Series or for a 6 (*) DIN modules consumer unit or for making up a junction box by using a blank cover.
- 4 x rectangular knock-out side entries 53x40mm
- 4 x 34mm diameter entries that can be knocked out at the bottom
- Coupling insert to provide a passage for the wires from one box to the next without requiring pipes, and for perfect alignment between the boxes.
Surface mounting box
- A single box suitable for housing any of the interlocked-switch sockets outlets of the OMNIA Series or a consumer unit for 6 (*) DIN modules (17,5mm) or for making up a junction box by using a blank cover.
- Surface mounting by means of 4 slotted holes for easier centring or panel mounting by means of holes for easier centring or panel mounting by means of holes on the back of the box.
- Knockout holes on all sides
|
top: |
n° 2x PG16 - 23mm and n° 1x PG21 - 29mm |
|
|
sides: |
n° 2x PG16 - 23mm |
|
|
bottom: |
n° 1x PG16 - 23mm |
|
|
end: |
n° 2x PG16 - 23mm |
- (the boxes may be used upside down)
- 2 notches for fastening the EN50022 rail
- draining holes on all four sides
- Double insulation (use the bottom insulating caps supplied)
TECHNICAL CHARACTERISTICS
- Protection degree IP55 to IEC 529 CEI 70-1
- Double insulation (use the bottom insulating caps supplied)
- Made of halogen-free self-extinguishing thermoplastic material. RAL 7035 gray, abnormal heat and fire resistant up to 650°C (glow-wire test to IEC 695-2-1).
- Dimensional stability in continuous operation from -20°C to +85°C.
- Impact resistance: 6 Joule
- Resistance to chemicals (water, saline solutions, acids, bases, mineral oils) end weathering.
- Can be installed in areas at risk of fire
- Stainless steel quick locking screws.
- Non-ageing elastomer seals.
- Compliance with CEI 23-48 and CEI 23-49, IEC 670 (only for boxes coupled to the consumer unit or with blank cover)
ACCESSORIES
- The OMNIA System comes complete with a kit with all fittings for installation.
- Depending on the product purchased, the kit includes the coupler for joining together the surface mounting boxes, fastening screws and seals, the EN50022 (17,5mm),rail if required, instructions and any other parts necessary for a proper installation.
- a protective cover is also available for ensuring IP20 on the back of the OMNIA Series interlocked-switch socket outlet when panel mounted.
-
500.M1670 | 500M1670 | Scame | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 16A Rated Voltage:110V -130V, Poles: 2P+E -

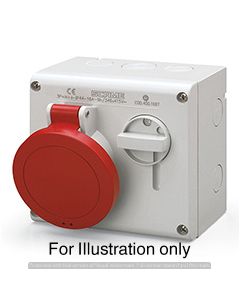

500.M1683 | 500M1683 | Interlocked Socket | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 16A Rated Voltage:200V -250V, Poles: 2P+E -
500.M1686 | 500M1686 | Scame | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 16A Rated Voltage: 380V -415V, Poles: 3P+E -
500.M1687 | 500M1687 | Scame | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 16A Rated Voltage: 346V -415V, Poles: 3P+N+E -

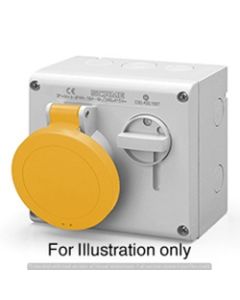

500.M3270 | 500M3270 | Scame | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 32A Rated Voltage: 110V -130V, Poles: 2P+E -
500.M3283 | 500M3283 | Scame | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 32A Rated Voltage: 200V -250V, Poles: 2P+E -
500.M3286 | 500M3286 | Scame | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 32A Rated Voltage: 380V -415V, Poles: 3P+E -

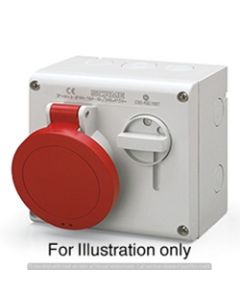

500.M3287 | 500M3287 | Scame | Omnia SeriesInterlocked Socket, Surface Mount, Rated Current: 32A Rated Voltage: 346V - 415V, Poles: 3P+N+E
