Bulgin Push Pull Connectors
Push-Pull connectors provide a clean streamlined look on devices.
They also offer space-saving benefits as they only require two fingers to grip the shell to connect or disconnect without twisting
- High-reliability
- Strong-locking mechanism
- Multiple contacts from 2 to 30
- Integrated latch for mating
- High packing density for space savings
- Shock Resistance: 100g, 6ms
- Resistance of Vibration: 10-2000Hz, 15g
- Keying system («G» key standard) of similar
- connectors for connector alignment – 360°
- screening for full EMC shielding.
- Security of the Push-Pull self-latching system
- Shielding Efficiency: >75db(10MHz) >40db(1GHz)
- Solder contacts
- Temp:-50°C to +200°C
- Cycle: >4500
- Multiple key options to avoid cross mating
- Humidity: up to 95% at 60 C
- Salt Spray Corrosion Test: >144h
-
PPCEGG0002CLL | 2 Contacts Fixed Socket 00 Series2 Contacts Fixed Socket 00 Series Connector, Max current 5 Amps, Max Panel Thickness: 5.5mm Ingress Protection: IP50 -
PPCEGG0003CLL | 3 Contacts Fixed Socket 00 Series3 Contacts Fixed Socket 00 Series Connector, Max current 3 Amps, Max Panel Thickness: 5.5mm Ingress Protection: IP50 -
PPCEGG0004CLL | 4 Contacts Fixed Socket 00 Series4 Contacts Fixed Socket 00 Series Connector, Max current 2 Amps, Max Panel Thickness: 5.5mm Ingress Protection: IP50 -
PPCEGG0B02CLL | 2 Contacts Fixed Socket 0X Series2 Contacts Fixed Socket 0X Series Connector, Max current 10 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50 -
PPCEGG0B03CLL | 3 Contacts Fixed Socket 0X Series3 Contacts Fixed Socket 0X Series Connector, Max current 8 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50 -
PPCEGG0B04CLL | 4 Contacts Fixed Socket 0X Series4 Contacts Fixed Socket 0X Series Connector, Max current 7 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50 -
PPCEGG0B05CLL | 5 Contacts Fixed Socket 0X Series5 Contacts Fixed Socket 0X Series Connector, Max current 6.5 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50 -
PPCEGG0B06CLL | 6 Contacts Fixed Socket 0X Series6 Contacts Fixed Socket 0X Series Connector, Max current 2.5 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50 -
PPCEGG0B07CLL | 7 Contacts Fixed Socket 0X Series7 Contacts Fixed Socket 0X Series Connector, Max current 2.5 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50 -
PPCEGG0B09CLL | 9 Contacts Fixed Socket 0X Series9 Contacts Fixed Socket 0X Series Connector, Max current 2 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50 -
PPCEGG0K02CLL | 2 Contacts Fixed Socket 0Y Series2 Contacts Fixed Socket 0Y Series Push Pull Connector, Max current 10Amps -

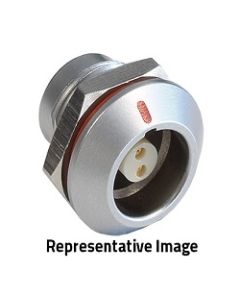

PPCEGG0K03CLL | 3 Contacts Fixed Socket 0Y Series3 Contacts Fixed Socket 0Y Series Push Pull Connector, Max current 8Amps
