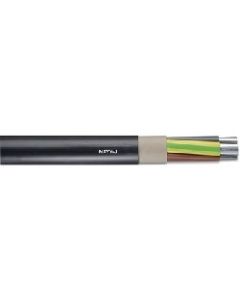

Lapp NAYY Series Direct Burial Cable

Fixed installation, direct burial, PVC cable

  • Cables with aluminium conductor for direct burial
  • Suitable for building installation and fixed installation

Application range

  • Power and control cable for fixed installation
  • For indoor and outdoor use Burial without additional underground protection
  • Normal minimum installation depth 0.6 m, but at least 0.8 m under roads

Product Make-up

  • Aluminium conductor Abbreviations "re", "se":
  • r = round conductor form;
  • s = sectorial conductor form;
  • e = single-wire conductor
  • Core insulation: Based on PVC
  • Filling compound over the core assembly
  • Outer sheath: Based on PVC

Technical Data

  • Minimum bending radius: Fixed installation: 12 x outer diameter
  • Nominal voltage: U0/U: 0.6/1.0 kV
  • Protective conductor: J = with GN-YE protective conductor O = without protective conductor
  • Temperature range: During installation: -5°C to +50°C
  • Fixed installation: -30°C to +70°C
  • Core identification code: According to VDE 0293-308 (table T9)
