KTF Slit Grommets / KEL-Jumbo Frames
KTF Grey Grommets
- Large slit cable grommet for preassembled cable diameters of up to 65 mm.
- Suitable for KEL-JUMBO
- Cables with a smaller diameter can be utilised using an adapter grommet
- Material: Elastomer
- Colour:;grey (similar RAL 7035)
- Flame class:UL94-V0, self-extinguishing
- Temperature:-40°C to- 100 °C (static)
- Properties Halogen-free, Silicone-free
- With strain relief
- Mounting height 2.5 mm
KEL-JUMBO cable entry frames
- Installation of cables up to 65 mm
- KTF grommets allow flexing and adjustment of the cable position
- Retrofitting and maintenance can be carried out easily and quickly
- Strain relief according to EN 62444
- P rating: IP54
- UL Type: 12
- Material Polyamide
- Colour: Black (RAL 9005)
- Flame class UL94-V0, self-extinguishing
- Temperature (°C) -40°C to- 140°C (static)
- Properties Halogen-free, Silicone-free, Anti-corrosive (V2A versions)
- Mounting type Screw type mounting
- Mounting height 35 mm
-

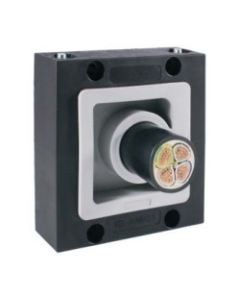

42350 | KEL-JUMBO 2 black | Entry FrameCable Entry Frame, Screw type mounting, Grommets: 1 x KTF, Frame Dimensions, Length 200mm, Width 116mm, Height: 35mm
-
42350.200 | KEL-JUMBO 2 black V2A | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 2 x KTF, Frame Dimensions, Length 200mm, Width 116mm, Height: 35mm
-
42360 | KEL-JUMBO 1 black | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 1 x KTF, Frame Dimensions, Length 110mm, Width 116mm, Height: 35mm
-
42360.200 | KEL-JUMBO 1 black V2A | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 1 x KTF, Frame Dimensions, Length 110mm, Width 116mm, Height: 35mm
-

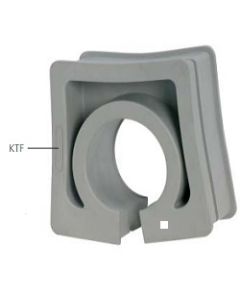

42371 | KTF 00 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Adapter Grommet for KT Large, Material: Elastomer -
42376 | KTF 34 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Clamping Range: 33 - 36mm, Material: Elastomer
-
42379 | KTF 38 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Clamping Range: 37 - 40mm, Material: Elastomer
-
42382 | KTF 42 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Clamping Range: 41 - 44mm, Material: Elastomer
-
42385 | KTF 46 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Clamping Range: 45 - 48mm, Material: Elastomer
-
42388 | KTF 50 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Clamping Range: 48 - 52mm, Material: Elastomer
-
42391 | KTF 54 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Clamping Range: 53 - 56mm, Material: Elastomer
-
42394 | KTF 58 | Jumbo GrommetGrommets for KEL-JUMBO Frames, For Cable Diameters up to 65mm, Clamping Range: 56 - 60mm, Material: Elastomer
