M5 - M12 Circular Connectors

                                        M5 – M12 Connectors / Cordsets

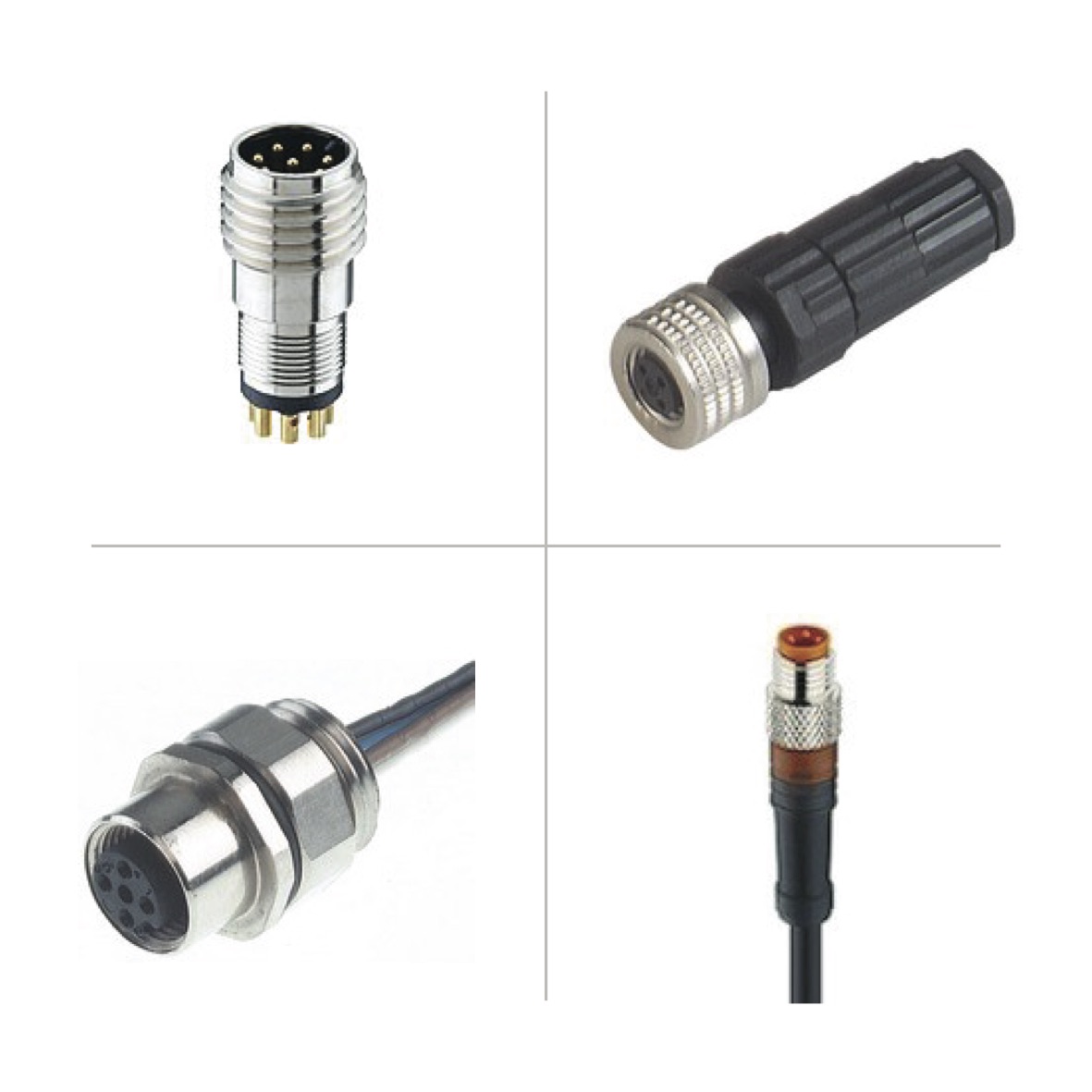

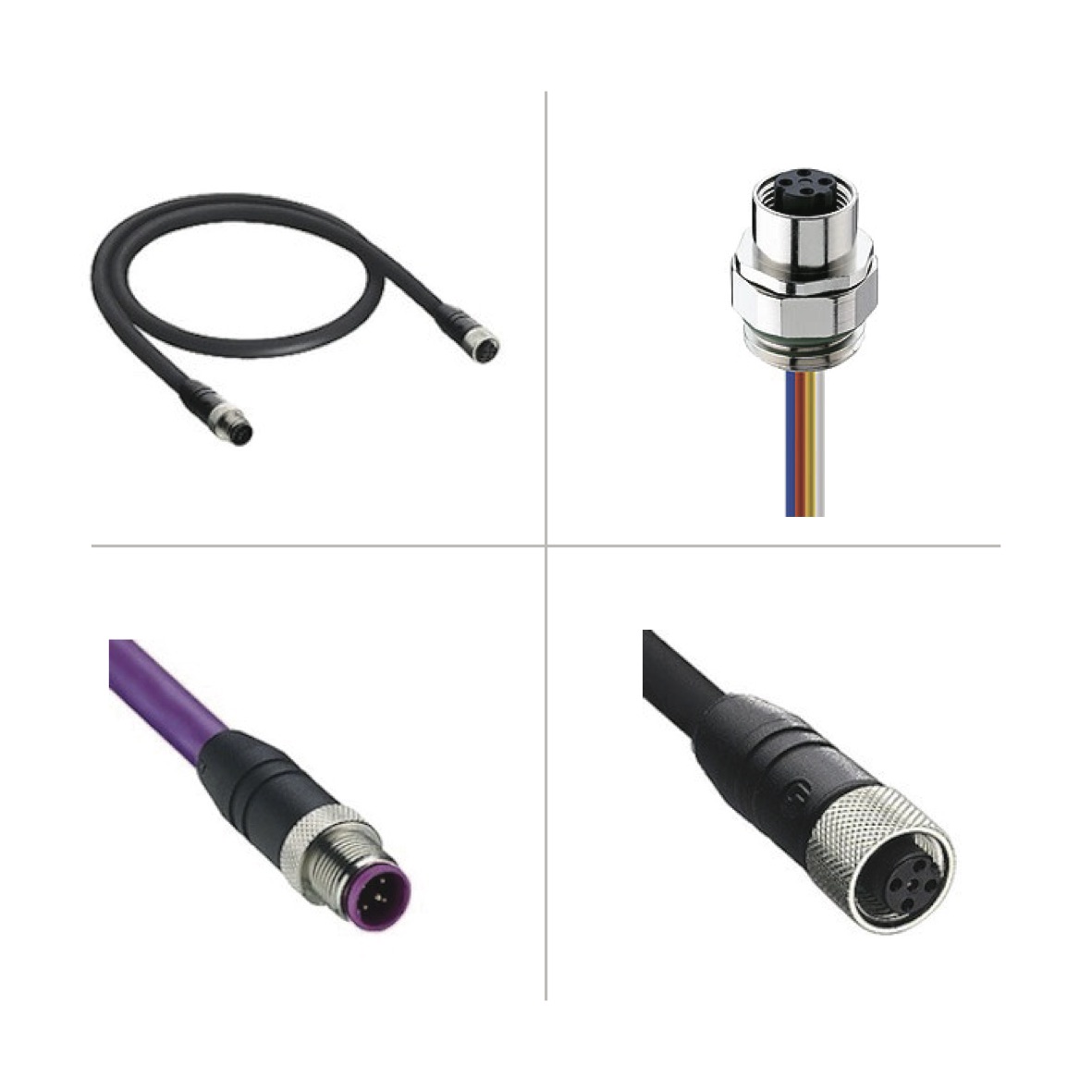

                              Front Mounting                            Field Attachable                  Rear Mounting



We offer a variety of connectors for Signal / Power / Data  transmission in sizes M5, M8 and M12. Versions are available with IDC displacement connection, screw, spring, Piercecon®, solder, crimp, or solder-in connection. From small to large, straight or angled, self-locking threaded joint,  moulded or for on-site assembly, Single ended and double ended cordsets are available. Save time during connection, with innovative connection solutions for devices with all the usual degrees of protection associated with industrial use. Do you need an individual solution for special requirements? On request, we will make individual adjustments to our  Phoenix Contacts standard products quickly and flexibly. Moulded connectors and litz wires in various types, lengths, and assemblies. 360 degree shielded and ingress protection rated IP67 to IP69k variants of  connectors are available. Receptacle connectors, Actuator / sensor  connectors, over moulded single ended  cordsets, over moulded double ended M8 cordsets with and without LED, right angle options also available. Receptacle connectors for front and rear mount with or without cabling. Cabled receptacle are epoxy potted, Connectors for Chassis or PCB mount.  Complete Electronics Ltd have a wide range of circular connectors which include M5, M8, and M12 from Lumberg Automation and Phoenix Contact. The PLUSCON circular M5-M12 product program from Phoenix Contact consists of standardized circular connectors that have been developed to the industry standard in industrial automation, from infrastructure and rail technology to outdoor applications. Connection technology for distributed  modules are designed for harsh ambient conditions in industrial production processes. Complete Electronics Ltd  offers a wide range of one piece and two-piece device connectors for PCB assembly in M5, M8 and M12 types. Various connection solutions are available to you for wave, THR, and SMD soldering processes. We have access to a comprehensive product range of assembled cables for quick and convenient field cabling.

 Product Features

  • Data up to 10 Gbps
  • Coding for all common networks and fieldbus systems
  • Circular Connectors according to IEC 61076-2-104
  • Field Attachable Connectors
  • Straight or Right Angled connectors
  • Receptacle Connectors
  • Choice of PVC, PUR halogen free and PUR welding spark resistant cables
  • Cable variants in many lengths available  with and without LED function indicator
  • Components according to CAT6A
  • Hybrid connectors for transmission of data and power over Ethernet simultaneously
  • 360° shielded connectors
  • Screwed clamp terminals, cage clamp terminals and quick connection technologies
  • Infrastructure and rail technology to outdoor applications
  • Connecting signals up to 17 positions
  • For power supplies up to 630 V and 16 A



If you are looking to design in a circular connector and are looking for advice or assistance in specifying the right component, then contact our technical team using  live chat on our website,  e-mail sales@ce-ltd.com or call us on  +44 (0)1908 510792.

Complete Electronics Ltd are a franchised distributor for Lumberg Automation and Phoenix Contact  M5, M8 and M12 connectors

Items 1-12 of 1965

Set Descending Direction
  1. 0012501 | OLFLEX EB 3G1,5 | PVC Control Cable
    0012501 | OLFLEX EB 3G1,5 | PVC Control Cable
    0012501, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
  2. 0012502 | OLFLEX EB 4G1,5 | PVC Control Cable
    0012502 | OLFLEX EB 4G1,5 | PVC Control Cable
    0012502, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
  3. 0012503 | OLFLEX EB 5G1,5 | PVC Control Cable
    0012503 | OLFLEX EB 5G1,5 | PVC Control Cable
    0012503, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
  4. 0012504 | OLFLEX EB 7G1,5 | PVC Control Cable
    0012504 | OLFLEX EB 7G1,5 | PVC Control Cable
    0012504, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
  5. 0012505 | OLFLEX EB 12G1,5 | PVC Control Cable
    0012505 | OLFLEX EB 12G1,5 | PVC Control Cable
    0012505, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
  6. 0012506 | OLFLEX EB 18G1,5 | PVC Control Cable
    0012506 | OLFLEX EB 18G1,5 | PVC Control Cable
    0012506, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
  7. 0906 UTP 104 | 0906UTP104 | 98611 | Adaptor
    0906 UTP 104 | 0906UTP104 | 98611 | Adaptor
    T-connector, M12 female with two M12 male connectors, 5 poles, especially suitable to connect decentral 24 V power supply (Power module) with (LioN-Link-) I/O modules
  8. 0906 UTP 302 | 16588 | T Connector
    0906 UTP 302 | 16588 | T Connector
    T-Connector with 7/8" male/female connector, 5 Poles
  9. 0909 UAC 101 | 10901 | Sealing Cap | Dust Cover
    0909 UAC 101 | 10901 | Sealing Cap | Dust Cover

    Oil resistant Dust Cap for M12 Male Connectors, Colour: Yellow

  10. 0910 ASL 501 | 30606 | AS Interface Module
    0910 ASL 501 | 30606 | AS Interface Module
    AS-Interface module with 4 digital inputs to connect M8 standard sensors
  11. 0915 034 101/1 M | 29716 | AS Interface Cordset
    0915 034 101/1 M | 29716 | AS Interface Cordset
    AS-Interface cordset, double ended, M12 male - M12 female 4 Pole 1m
  12. 0915 034 101/5 M | 29718 | AS Interface Cordset
    0915 034 101/5 M | 29718 | AS Interface Cordset
    AS-Interface cordset, double ended, M12 male- M12 female 4 pole 10m
