  400 Series SMB

The SMB Antenna is a sealed, waterproof antenna engineered for three major frequency bands, covering wireless LAN, Bluetooth, Zigbee, GSM/cellular and general purpose radio applications. Available in straight and 90 degree design, the Bulgin SMB Antenna offers a wireless data solution complete with protection from harsh environments whilst maintaining the sealing integrity of equipment.

SMB Buccaneer Features:

  • Sealed to IP68 when mated
  • IP69K, Tested in accordance with DIN 40050/Part 9 IP6k9k
  • 50Ω Impedance SMB connector
  • Frequency range 0-4GHz
  • Diameter over coupling ring 19mm
  • Body moulding, Nylon UL94-V0 rated
  • Gold plated contacts

Contact resistance:-

  • Centre - 6mΩ max
  • Outer - 2.5mΩ max.

 Two versions of Flex Connector:-

  • Re-wireable

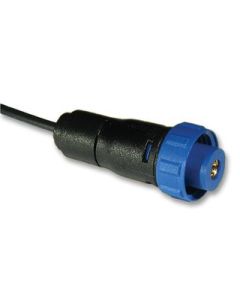

  • Pre-wired - lengths 1m, 3m & 5m

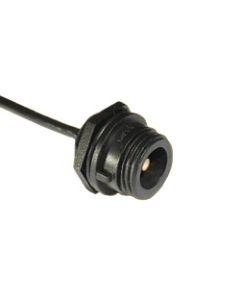

Panel connectors:-

  • Pre-wired - lengths 0.5m,1m & 1.5m
  • Cable accommodation (flex re-wireable), RG-174
  • Cable type (pre-wired connectors), RG-174
