OLFLEX LIFT
ÖLFLEX® LIFT F CABLE
PVC flat cables, Flexible at cold temperatures
Application range
- For hoisting equipment and conveyor systems
- Indoor cranes and high-rack facilities
- As supply line for moving machine parts
- According to VDE definition, this can also be used as a lift control cable with up to 35 m suspension length
- Maximum speed of travel at 1.6 m/s
Approvals
- Based on EN 50214/ VDE 0283-2 (H05VVH6-F or H07VVH6-F)
- Meets the requirements of the harmonised PVC flat cable H07VVH6-F
Product Make-up
- Conductor made of bare copper wires
- Core insulation: Based on PVC
- Outer sheath: Based on PVC
- Flame-retardant according IEC 60332-1-2
Core identification code
- Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
- From 6 cores: black with white numbers
-

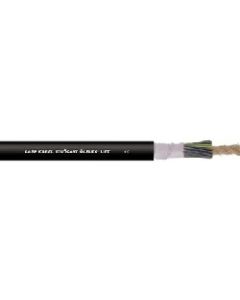

0027001 | OLFLEX LIFT T 7G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 7 Core, Core Diameter1mm² -
0027002 | OLFLEX LIFT T 12G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 12 Core, Core Diameter1mm²
-
0027004 | OLFLEX LIFT T 20G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 20 Core, Core Diameter1mm²
-
0027005 | OLFLEX LIFT T 24G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 24 Core, Core Diameter1mm²
-
0027007 | OLFLEX LIFT T 36G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 36 Core, Core Diameter1mm²
-
0027008 | OLFLEX LIFT T 18G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 18 Core, Core Diameter1mm²
-
0027009 | OLFLEX LIFT S 24G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 24 Core, Core Diameter1mm²
-
0027010 | OLFLEX LIFT S 36G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 36 Core, Core Diameter1mm²
-
0027020 | OLFLEX LIFT 7G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 7 Core, Core Diameter1mm²
-
0027022 | OLFLEX LIFT 12G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 12 Core, Core Diameter1mm²
-
0027024 | OLFLEX LIFT 18G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 18 Core, Core Diameter1mm²
-
0027027 | OLFLEX LIFT 24G1 | Lapp CablesOLFLEX LIFT, PVC lift cable with supporting element, 24 Core, Core Diameter1mm²
