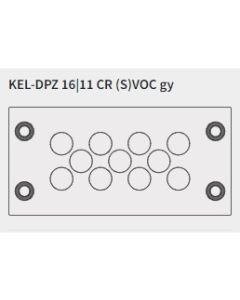

KEL-DPZ CR High Density Gland Plate

KEL-DPZ CR

High density gland plate, IP66

  • Suitable for cables without connectors, hoses or fibre optics
  • From 1.5 mm to 22 mm in diameter
  • Strain relief and protection up to IP66 / UL type 12.
  • Matches exactly the cut-out dimensions of 6-, 16- and 24-pin standard industrial connector
  • Designed for routing up to 72 cables through the pre-cut standard cut-out.
  • Self tapping fixing screws included
  • The products with part number ending .600 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
  • And the materials used for these products have been tested and certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
  • The products with the part number ending .601 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.



  • Material: Elastomer
  • Base Frame Material: Polyamide
  • Base Frame Material: Stainless Steel (V2A)
  • Flame Class: UL94-V0, self-extinguishing
  • Operating Temperature: -40 C° to 100 C°
  • Silicone Free
  • Halogen Free
  • Screw type Mounting
