IEC Distribution Units
Bulgin IEC Distribution Units
Bulgin IEC Distribution Units have combinations of four, five or six outlets together with a neon indicator, fuse and switch options. The three sizes are available in various combinations and, other than the compact version, all have shuttered outlets. The larger enclosed versions are also available with EMI filtering.
IEC Distribution Unit
Specifications
Mouldings: Thermoplastic
Housing: ABS
Connectors: Nylon
Contacts: Outlets: Brass, Tin Plated, Inlets: Brass, Nickel Plated
Voltage Rating: 250V a.c. 50/60Hz
Current Rating: 10A
Proof Voltage: 2kV
Temp. Range: –5°C to +60°C
Mating Connectors: PX0686, PX0686/SE
RoHS Compliant
Filter
Current: <0.35mA (at 250V, 50Hz)
Capacitor 2 x 2.2nF (Y), 1 x 15nF (X)
Inductance: 2 x 0.35mH
Fuse: 5 x 20mm, 10A (ceramic HRC type, IEC 127)
Compact Distribution Unit
Specifications
Mouldings: Thermoplastic
Housing: ABS, UL94V-0
Connectors: BS1363, CEE7, NEMA 5/15
Contacts: Outlets: Brass, Tin Plated, Inlets: Brass, Nickel Plated
Voltage Rating: 250V a.c. 50/60Hz
Current Rating: 10A
Proof Voltage: 2kV
Temp. Range: –5°C to +60°C
Approvals: UL Listed (PXD200)
RoHS Compliant
Part No. Inlet Outlet
PXD200 1 4
PXD201 2m cable with BS1363 plug 4
PXD201/1 2m cable with Schuko plug 4
PXD201/2 2m cable with NEMA 5/15 4
-
PXD200 | PXD200 | Compact IEC Distribution UNIT 4 OutletsCompact IEC Distribution Unit, 1 Inlet (EN60320), 4 Outlets -
PXD201 | PXD201 | Compact IEC Distribution UNIT 4 OutletsCompact IEC Distribution Unit, Inlet 2m Cable with BS 1363 Plug, 4 Outlets -
PXD201/1 | PXD2011 | Compact IEC Distribution UNIT 4 OutletsCompact IEC Distribution Unit, Inlet 2m Cable with Schuko Plug, 4 Outlets -
PXD201/2 | PXD2012 | Compact IEC Distribution UNIT 4 OutletsCompact IEC Distribution Unit, Inlet 2m Cable with NEMA 5/15, 4 Outlets -

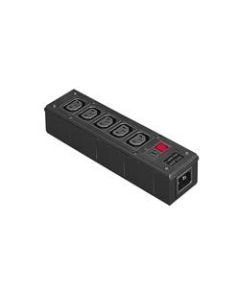

PXD301/050/01/1 | PXD301050011 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, 1 Inlet (EN60320), 5 Shuttered Outlets, Neon Indicator, 5 x 20mm fuse -

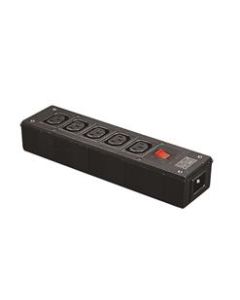

PXD301/050/07/1 | PXD301050071 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, Inlet 2m Cable with BS1363 Plug, 5 Shuttered Outlets, With Red illuminated Switch and EMI Filter -
PXD301/050/08/1 | PXD301050081 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, 1 Inlet (EN60320), 5 Shuttered Outlets, With Green illuminated Switch -
PXD301/550/01/1 | PXD301550011 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, 1 Inlet (EN60320), 5 Shuttered Outlets, Neon Indicator, 5 x 20mm fuse and EMI Filter -
PXD301/550/07/1 | PXD301550071 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, 1 Inlet (EN60320), 5 Shuttered Outlets, With Red illuminated Switch and EMI Filter -
PXD301/550/08/1 | PXD301550081 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, 1 Inlet (EN60320), 5 Shuttered Outlets, With Green illuminated Switch and EMI Filter -

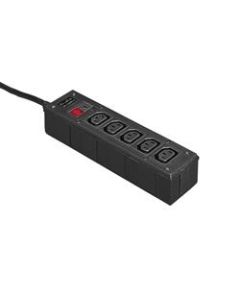

PXD303/050/01/1 | PXD303050011 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, Inlet 2m Cable with BS1363 Plug, 5 Shuttered Outlets, Neon Indicator, 5 x 20mm fuse -
PXD303/050/07/1 | PXD303050071 | IEC Distribution Unit 5 OutletsIEC Distribution Unit, Inlet 2m Cable with BS1363 Plug, 5 Shuttered Outlets, Red illuminated Switch
