Battery Holders
Bulgin Battery Holders
Manufactured from quality moulding and metal components to ensure a secure and reliable connection, Bulgin’s battery holder range caters for battery sizes AAA (R03), AA (R6), C (R14), D (R20) and PP3 (6R61), accommodating 1, 2, 3 or 4 cells.
Choice of PCB/Base Mount open frame holders or Panel Mount enclosed holders, depending on part code. For battery sizes; AAA(R03), AA(R6), C(R14), D(R20), PP3(6R61) and CR123, accommodating 1, 2, 3 or 4 cells.
Standard fixing and front panel sealed panel mounting versions are IP67 rated
PCB/Base Mount holders have both 2.8 Series Tab/Solder Tag Termination and PCB Spills (PCB Spills can be removed if required). Most PCB/Base Mount holders can be interlocked for multiple assemblies
Panel Mount holders have 2.8 Series Tab/Solder Tag or Solder Tag Termination (D/R20 holders have 4.8 Series Tab/Solder Tag Termination). Most Panel Mount holders are available in a choice of standard fixing or front panel sealed to IP67 (part codes starting BXS); sealed versions are supplied complete with gaskets and sealing grommets as required. It is recommended that multi-cell Panel Mount holders are supported by a rear bracket.
-
-
-

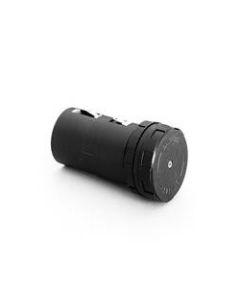

BX0003/1 | BX00031 | Bulgin Battery HolderC cell (R14) Battery Holder - 3 Cell, Panel Mount, Termination: 2.8 Series Tabs -
-
-

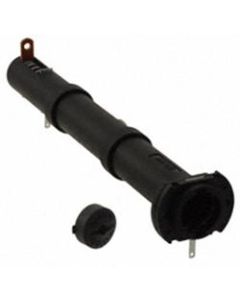

BX0013/1 | BX00131 | Bulgin Battery HolderAA (R6) Battery Holder - 3 Cell, Panel Mount, Termination: 2.8 Series Tabs -
-
-

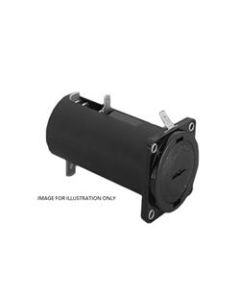

BX0018 | Bulgin Battery HolderD cell (R20) Battery Holder - 3 Cell, Panel Mount, Termination: 4.8 Series Tabs -
-
BX0026 | Bulgin Battery HolderPP3 Panel Mount Type - 2 Cell Panel Mount PP3 Battery Holder(Solder tabs), Removable loading drawers -
