KEL-DPZ-HD CR round, hygienic design, IP66/IP68
KEL-DPZ-HD CR round FDA Compliant
Hygienic design, IP66/IP68
- With metric thread from M32 to M63
- For installation in food processing and packaging machines
- For cleanroom applications
- The outer contour has a radius of 6 mm instead of the required 3 mm
- Uses an FDA-compliant elastomer in accordance with food approval 1935/2004/EG and (EU) 10/2011
- Designed to route several cables and hoses with a diameter range of 3.2 mm to 22.2 mm
- Seals acc. to IP65/66/67/68.
- The products with part number ending .600 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
- And the materials used for these products have been tested and certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17).
- The products with the part number ending .601 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Material: Elastomer
- Base Frame: Polyamide
- Operating Temperature: -40 C° to 80 C°
- Silicon free
- Halogen Free
- Resistant to oil and mould
- Higher chemical resistance
-

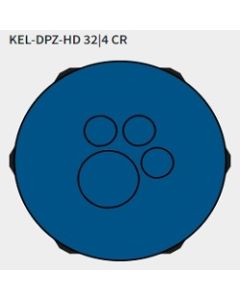

KEL-DPZ-HD 32|4 CR (S)VOC | 70351.600 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 4, Clamping Range: 3 x 3.2 - 6.5mm +1 x 7.2 - 12.5, IP66/IP68 -
KEL-DPZ-HD 32|4 CR | 70351.601 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 4, Clamping Range: 3 x 3.2 - 6.5mm +1 x 7.2 - 12.5, IP66/IP68 -

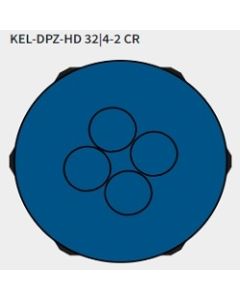

KEL-DPZ-HD 32|4-2 CR (S)VOC | 70352.600 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 4, Clamping Range: 4 x 5 - 9.5mm, IP66/IP68 -
KEL-DPZ-HD 32|4-2 CR | 70352.601 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 4, Clamping Range: 4 x 5 - 9.5mm, IP66/IP68 -

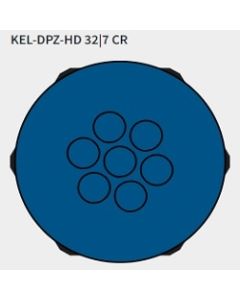

KEL-DPZ-HD 32|7 CR (S)VOC | 70353.600 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 7, Clamping Range: 7 x 3.2 - 6.5mm, IP66/IP68 -
KEL-DPZ-HD 32|7 CR | 70353.601 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 7, Clamping Range: 7 x 3.2 - 6.5mm, IP66/IP68 -

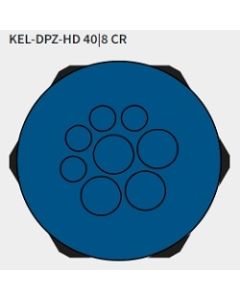

KEL-DPZ-HD 40|8 CR (S)VOC | 70354.600 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 8, Clamping Range: 4 x 3.2 - 6.5mm + 4 x 5 - 10.2mm, IP66/IP68 -
KEL-DPZ-HD 40|8 CR | 70354.601 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 8, Clamping Range: 4 x 3.2 - 6.5mm + 4 x 5 - 10.2mm, IP66/IP68 -

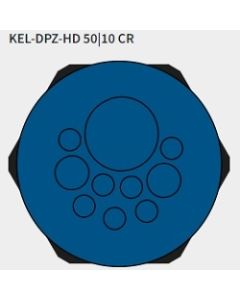

KEL-DPZ-HD 50|10 CR (S)VOC | 70356.600 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 10, Clamping Range: 7 x 3.2 - 6.5mm + 2 x 5 - 10.2mm +1 x 16- 22mm , IP66/IP68 -
KEL-DPZ-HD 50|10 CR | 70356.601 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 10, Clamping Range: 7 x 3.2 - 6.5mm + 2 x 5 - 10.2mm +1 x 16- 22mm , IP66/IP68 -

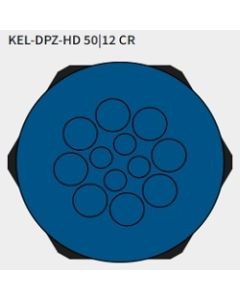

KEL-DPZ-HD 50|12 CR (S)VOC | 70357.600 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 12, Clamping Range: 4 x 3.2 - 6.5mm + 8 x 5 - 10.2mm, IP66/IP68 -
KEL-DPZ-HD 50|12 CR | 70357.601 | Cable Entry PlatesKEL DPZ HD round cable entry plates, Number of cables: 12, Clamping Range: 4 x 3.2 - 6.5mm + 8 x 5 - 10.2mm, IP66/IP68
