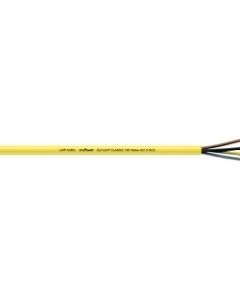

Lapp OLFLEX CLASSIC 100 Yellow
- Colour Coded, Power & Control Cable
- Alternative for for YSLY or YY
- Fine-wire strand made of bare copper wires
- Nominal Voltage: UO/U 450/750 Vac
- Good Chemical Resistance
- Flame Retardant
- Fixed Installation Temp Range: -40°C to +80°C
- From 3 to 5 Cores
- Conductor Cross Section From 1.5mm² to 2.5mm²
- Outer Sheath: PVC
- Outer Sheath Colour: Yellow (similar to RAL 1016)
- Photographs and graphics are not to scale and do not represent detailed images of the respective products
-
0010400 | OLFLEX CLASSIC 100 YELLOW | Flexible PVC CableFlexible PVC Cable, Colour Coded Power & Control Cable, 3 Core, Conductor Diameter 1.5mm², Outer Diameter of Cable 8.1mm -
0010401 | OLFLEX CLASSIC 100 YELLOW | Flexible PVC CableFlexible PVC Cable, Colour Coded Power & Control Cable, 3 Core, Conductor Diameter 2.5mm², Outer Diameter of Cable 9.6mm
-
00104023 | OLFLEX CLASSIC 100 YELLOW | Flexible PVC CableFlexible PVC Cable, Colour Coded Power & Control Cable, 4 Core, Conductor Diameter 1.5mm², Outer Diameter of Cable 8.9mm
-
00104033 | OLFLEX CLASSIC 100 YELLOW | Flexible PVC CableFlexible PVC Cable, Colour Coded Power & Control Cable, 5 Core, Conductor Diameter 1.5mm², Outer Diameter of Cable 10mm
-
00104043 | OLFLEX CLASSIC 100 YELLOW | Flexible PVC CableFlexible PVC Cable, Colour Coded Power & Control Cable, 4 Core, Conductor Diameter 2.5mm², Outer Diameter of Cable 10.7mm
-
00104053 | OLFLEX CLASSIC 100 YELLOW | Flexible PVC CableFlexible PVC Cable, Colour Coded Power & Control Cable, 5 Core, Conductor Diameter 2.5mm², Outer Diameter of Cable 11.8mm
