Servo Cable - Halogen Free
ÖLFLEX® SERVO 2XSLCH-JB
Halogen Free, Double Screened Servo Cable
- Flame-retardant (IEC 60332-1-2)
- Halogen-free (IEC 60754-1)
- No corrosive gases (IEC 60754-2)
- Low smoke density (IEC 61034-2)
- Low toxicity (EN 50305)
- UV and weather-resistant according to ISO 4892-2
- Fine-wire, bare copper conductor
- Core insulation: XLPE
- Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version)
- Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
- Outer sheath: Halogen-free special compound, colour black (RAL 9005)
Product features
Product Make-up
-
1133500 | ÖLFLEX® SERVO 2XSLCH-JB 4G1.5 | Servo CableNumber of cores and mm² per conductor: 4 G 1.5, Outer Diameter : 10.9mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
-
1133501 | ÖLFLEX® SERVO 2XSLCH-JB 4G2.5 | Servo CableNumber of cores and mm² per conductor: 4 G 2.5, Outer Diameter : 12.1mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
-
1133502 | ÖLFLEX® SERVO 2XSLCH-JB 4G4.0 | Servo CableNumber of cores and mm² per conductor: 4 G 4.0, Outer Diameter : 14.1mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
-
1133503 | ÖLFLEX® SERVO 2XSLCH-JB 4G6.0 | Servo CableNumber of cores and mm² per conductor: 4 G 6.0, Outer Diameter : 15.6mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
-
1133504 | ÖLFLEX® SERVO 2XSLCH-JB 4G10.0 | Servo CableNumber of cores and mm² per conductor: 4 G 10.0, Outer Diameter : 18mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
-
1133505 | ÖLFLEX® SERVO 2XSLCH-JB 4G16.0 | Servo CableNumber of cores and mm² per conductor: 4 G 16.0, Outer Diameter : 20.9mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
-
1133506 | ÖLFLEX® SERVO 2XSLCH-JB 4G25.0 | Servo CableNumber of cores and mm² per conductor: 4 G 25.0, Outer Diameter : 26mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
-

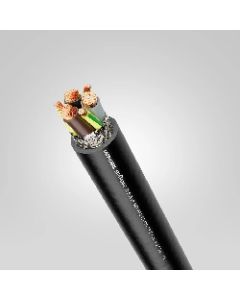

1133514| ÖLFLEX® SERVO 2XSLCH-JB | 3+3 1.5/0.25G| Servo CableNumber of cores and mm² per conductor: 3 X 1,5 + 3 X G 0,25, Outer Diameter : 10.9mm, Low-capacitance design, Flame retardant (IEC 60332-1-2)
-
1133515| ÖLFLEX® SERVO 2XSLCH-JB | 3+3 2.5/0.5G| Servo CableNumber of cores and mm² per conductor: 3 X 2,5 + 3 X G 0,5, Outer Diameter: 12mm, Low-capacitance design, Flame retardant (IEC 60332-1-2)
-
1133516| ÖLFLEX® SERVO 2XSLCH-JB | 3+3 4/0.75G| Servo CableNumber of cores and mm² per conductor: 3 X 4 + 3 X G 0,75, Outer Diameter: 13.5mm, Low-capacitance design, Flame retardant (IEC 60332-1-2)
-
1133517| ÖLFLEX® SERVO 2XSLCH-JB | 3+3 6/1G| Servo CableNumber of cores and mm² per conductor: 3 X 6 + 3 X G 1, Outer Diameter: 14.7mm, Low-capacitance design, Flame retardant (IEC 60332-1-2)
-
1133518| ÖLFLEX® SERVO 2XSLCH-JB | 3+3 10/1.5G| Servo CableNumber of cores and mm² per conductor: 3 X 10 + 3 X G 1.5, Outer Diameter: 16.7mm, Low-capacitance design, Flame retardant (IEC 60332-1-2)
